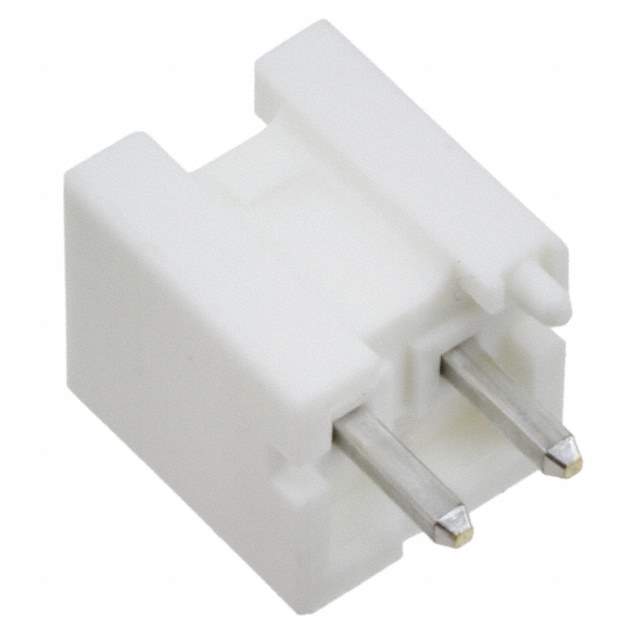

B2P-VH-FB-B(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B2P-VH-FB-B(LF)(SN)

Part No B2P-VH-FB-B(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.146" (3.70mm)
Insulation Height 0.433" (11.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Base Product Number B2P-VH
Other Names B2P-VH-FB-B (LF) (SN),Q4164154AD,B2P-VH-FB-B(LF)(SN);,B2P-VH-FB-B (LF) (SN),B2P-VH-FB-B(LF)(SN);,455-2947,B2P-VH-FB-B(LF)(SN)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293262-B2P-VH-FB-B(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B2P-VH-FB-B(LF)(SN) CAD Model

Description

The VH series is a board-to-cable/wire type of connector from JST Sales America Inc.

  • Series: VH
  • Contact Type: 2-Position Male Pin
  • Positions Loaded: All
  • Mounting Type: Through-Hole
  • Fastening Type: Locking Ramp
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Contact Finish (Mating and Post): Tin
  • Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • Shrouding: Shrouded with 4 Walls
  • Insulation Height: 0.433 inches (11.00mm)
  • Package: Bulk
  • Standard Package: 250
