Same model may have multiple batches, images only for reference.

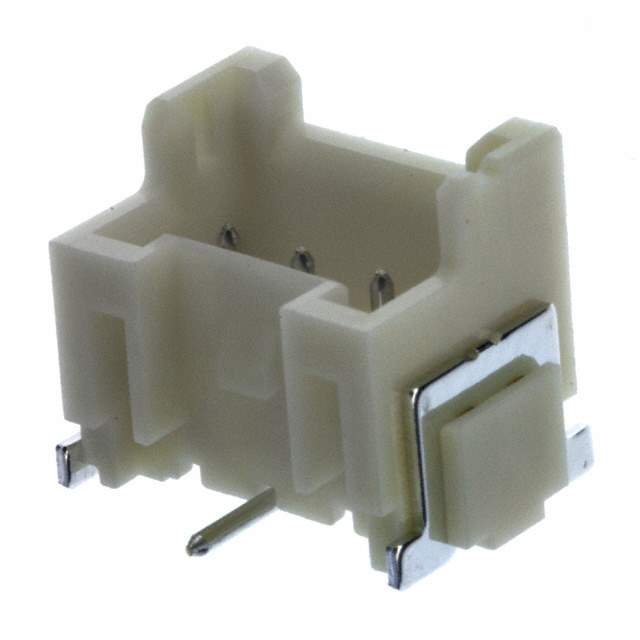

BM03B-XASS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM03B-XASS-TF(LF)(SN)

Part No BM03B-XASS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.370" (9.40mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.9mm
Base Product Number BM03B-XA
Other Names BM03B-XASS-TF(LF)(SN)-,455-2023-1,455-2023-2,BM03BXASSTFLFSN,455-2023-6
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293248-BM03B-XASS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM03B-XASS-TF(LF)(SN) CAD Model

Description

The BM03B-XASS-TF(LF)(SN) is a rectangular connector header, male pin manufactured by JST Sales America Inc.

  • Product Name: BM03B-XASS-TF(LF)(SN)
  • Win Source Part Number: 1293248-BM03B-XASS-TF(LF)(SN)
  • Series: XA
  • Positions: 3
  • Feature: Solder Retention
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Row: Single
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Package: Tape & Reel
  • Voltage Rating: 250V
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Current Rating: 3A
  • Pitch-Mating: 0.098" (2.50mm)
  • Contact Finish-Mating: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Operating Temperature: -25°C ~ 85°C
  • ECCN: EAR99
  • Shrouding: 4 Wall
  • Insulation Height: 0.370" (9.40mm)
