Same model may have multiple batches, images only for reference.

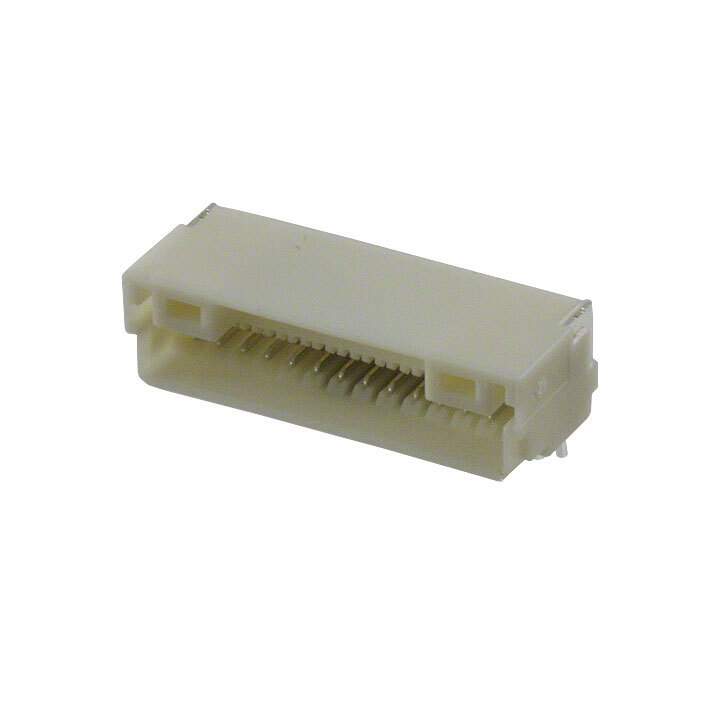

BM14B-NSHSS-TBT (LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM14B-NSHSS-TBT (LF)(SN)

Part No BM14B-NSHSS-TBT (LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1MM / Connector Header Surface Mount 14 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.236" (6.00mm)
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 7.8mm
Base Product Number BM14B-NS
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number BM14BNSHSSTBTLFSN,455-2778-6,455-2778-2,455-2778-1
Standard Package 1,000
Win Source Part Number 1332713-BM14B-NSHSS-TBT (LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM14B-NSHSS-TBT (LF)(SN) CAD Model

Description

The JST Sales America Inc. 1332713-BM14B-NSHSS-TBT (LF)(SN) header is a male pin connector designed for board-to-cable/wire style.

  • Connector Style: Board-to-Cable/Wire
  • Number of Positions: 14
  • Connector Type: Rectangular Connectors
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: Polyamide (PA), Nylon
  • Contact Material: Copper Alloy
  • RoHS Compliant: Yes
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount
  • Termination: Soldered
  • Contact Finish: Tin
  • Shrouding: 4 Walls
  • Pitch-Mating: 0.039" (1.00mm)
