Same model may have multiple batches, images only for reference.

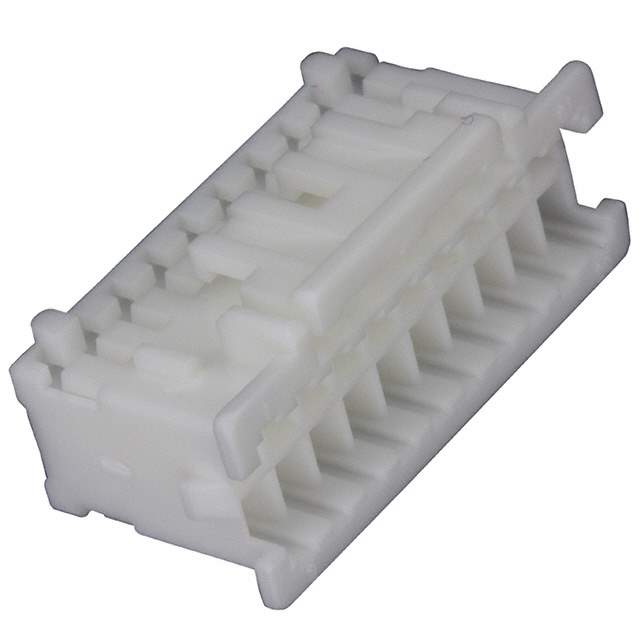

PADP-20V-1-S Real Image
Same model may have multiple batches, images only for reference.

PADP-20V-1-S

Part No PADP-20V-1-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 2.00MM / 20 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number PADP-20V
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number (D)PADP-20V-1-S,455-2144,PADP-20V-1-S-ND,PADP20V1S
Standard Package 1,000
Win Source Part Number 1332637-PADP-20V-1-S
Ultra Librarian 3D Model Ultra Librarian PADP-20V-1-S CAD Model

Description

The JST Sales America Inc. PADP-20V-1-S is a rectangular connector housing that comes with a receptacle connector type and female socket contact type.

  • Fastening Type: Latch Lock
  • Contact Termination: Crimp
  • Positions: 20
  • Rows: 2
  • Row Spacing: 0.079 inches
  • Color: Natural
  • Packaging: Bulk
  • Mounting Type: Free Hanging (In-Line)
  • RoHS Compliant: Yes
  • Contacts Included: No
