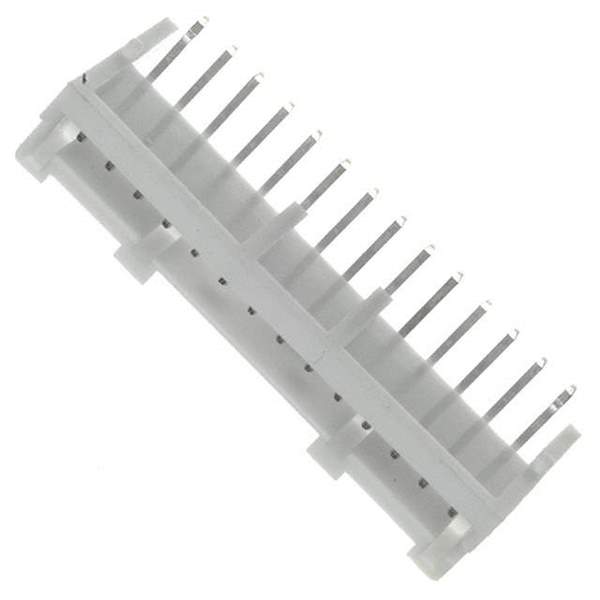

Same model may have multiple batches, images only for reference.

S14B-PASK-2(LF)(SN)

Name: S14B-PASK-2(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1339043
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	S14B-PASK-2(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 14POS 2MM / Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PA
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT) , Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S14B-PAS
Standard Package	200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339043-S14B-PASK-2(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S14B-PASK-2(LF)(SN) CAD Model

Alternative Products

Description

The 1339043-S14B-PASK-2(LF)(SN) is a male pin header connector from JST Sales America Inc.

Series: PA
Number of Positions: 14
Features: Board Guide, Kinked Pin
Termination: Solder
Fastening Type: Locking Ramp
Shrouded: With 4 Walls
Contact Material: Copper Alloy
Voltage Rating: 250V
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Style: Board to Cable/Wire
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Temperature Range: -25°C to 85°C
Current Rating: 3A
