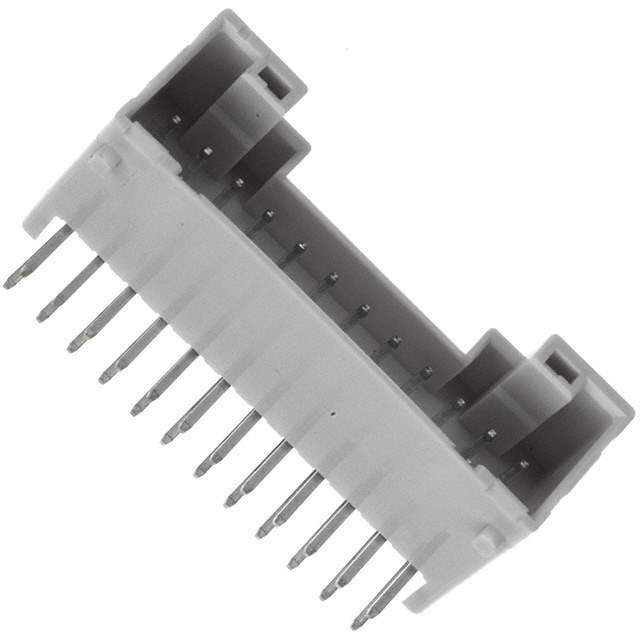

S24B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S24B-PUDSS-1(LF)(SN)

Part No S24B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 2MM / Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S24B-PUD
Standard Package 1,210
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349243-S24B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S24B-PUDSS-1(LF)(SN) CAD Model

Description

The PUDSS-1(LF)(SN) is a male pin header connector that is part of the PUD series.

  • Series: PUD
  • Number of Positions: 24
  • Connection Style: Board to Cable/Wire
  • Mounting Type: Through Hole, Right Angle
  • Shrouding: Shrouded, 4 Wall
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Packaging: Tray
  • Standard Package: 1,210
  • Manufacturer: JST Sales America Inc.
