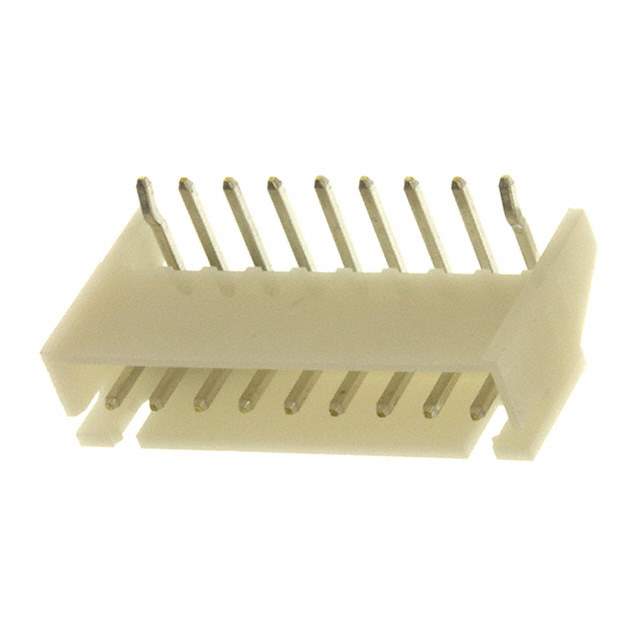

S9B-XH-A(LF)(SN)

Name: S9B-XH-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1333449
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S9B-XH-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 9POS 2.5MM / Connector Header Through Hole, Right Angle 9 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S9B-XH-A
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	455-2224,S9BXHALFSN,(G)S9B-XH-A(LF)(SN)
Standard Package	250
Win Source Part Number	1333449-S9B-XH-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S9B-XH-A(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. S9B-XH-A(LF)(SN) is a male pin header connector with a detent lock fastening type.

Connector Type: Male Pin Header
Fastening Type: Detent Lock
Shrouding: 4 Walls, Shrouded
Style: Board to Cable/Wire
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA66), Nylon 6/6
Insulation Color: Natural
Pitch-Mating: 0.098" (2.50mm)
Contact Length-Post: 0.134" (3.40mm)
Operating Temperature: -25°C to 85°C
Current Rating: 3A
Voltage Rating: 250V
Base Product Number: S9B-XH-A
RoHS Compliant: Yes
