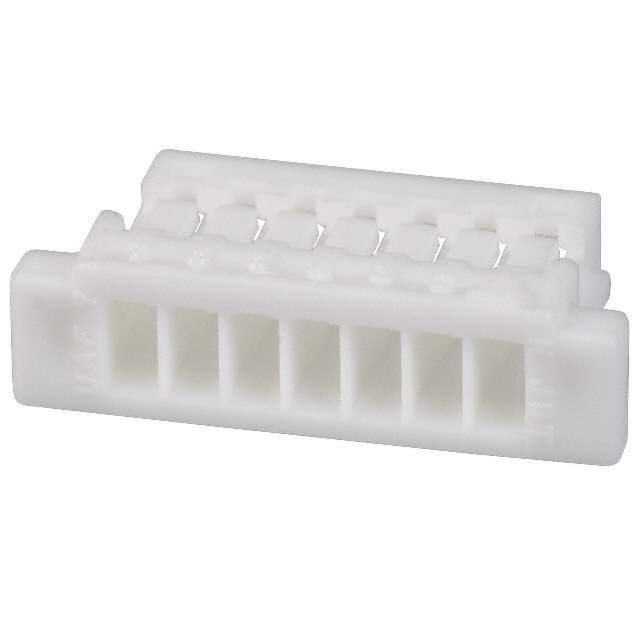

SHR-07V-S-B Real Image
Same model may have multiple batches, images only for reference.

SHR-07V-S-B

Part No SHR-07V-S-B
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 7POS 1.00MM / 7 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 7
Pitch 0.039" (1.00mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number SHR-07V
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 455-1382,SHR07VSB
Standard Package 2,000
Win Source Part Number 1332819-SHR-07V-S-B
Ultra Librarian 3D Model Ultra Librarian SHR-07V-S-B CAD Model

Description

The JST Sales America Inc. SHR-07V-S-B is a rectangular connector housing with a receptacle connector type.

  • Manufacturer: JST Sales America Inc.
  • Connector Type: Receptacle housing
  • Positions: 7
  • Pitch: 0.039” (1.00mm)
  • Color: Natural
  • Contact Type: Female socket
  • Termination: Crimp
  • Mounting: Free hanging (in-line)
  • Fastened: No
  • Contacts Included: No
  • Standard Package: 2,000 connectors
  • ECCN: EAR99
  • RoHS Compliant: Yes
