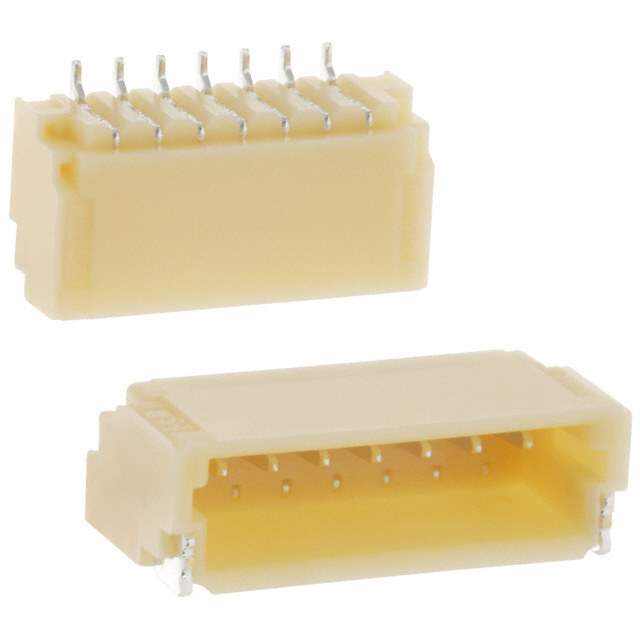

SM07B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM07B-SRSS-TB(LF)(SN)

Part No SM07B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SH/SR
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number SM07B-SR
Other Names SM07B-SRSS-TBLFSN,455-1807-6,455-1807-2,SM07BSRSSTBLFSN,455-1807-1,(G)SM07B-SRSS-TB(LF)(SN)
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293266-SM07B-SRSS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM07B-SRSS-TB(LF)(SN) CAD Model

Description

The 1293266-SM07B-SRSS-TB(LF)(SN) is a header connector that belongs to the SH/SR series of connectors.

  • Series: SH/SR
  • Type: Rectangular Connector
  • Contact Type: Male Pin
  • Positions Loaded: 7
  • Number of Rows: 1
  • Fastening Type: Push-Pull
  • Termination: Soldering
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Shrouding: Shrouded with 4 Walls
  • Insulation Color: Natural
  • Temperature Range: -25°C to 85°C
  • Current Rating: 1A
  • Style: Board to Cable/Wire
  • Packaging: Tape and Reel
  • Pieces per Package: 3000
  • Contact Shape: Square
  • Pitch: 0.039" (1.00mm)
  • Insulation Material: Polyamide (PA), Nylon
