Same model may have multiple batches, images only for reference.

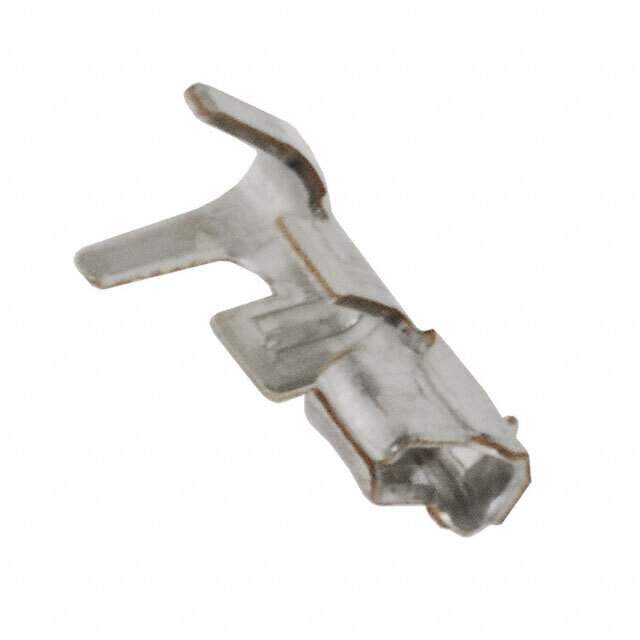

SZH-002T-P0.5 Real Image
Same model may have multiple batches, images only for reference.

SZH-002T-P0.5

Part No SZH-002T-P0.5
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr JST Sales America Inc.
Series ZH
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 26-28 AWG
Contact Finish Tin
Base Product Number SZH-002
Other Names (Q)SZH-002T-P0.5,SZH002TP05,455-1130-1,455-1130-2
Standard Package 13,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1293418-SZH-002T-P0.5
Ultra Librarian 3D Model Ultra Librarian SZH-002T-P0.5 CAD Model

Description

The 1293418-SZH-002T-P0.5 is a crimp socket contact from JST Sales America Inc.

  • Series: ZH
  • Contact Finish: Tin
  • Wire Gauge: 26-28 AWG
  • Standard Package: 13,000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.90.4000
