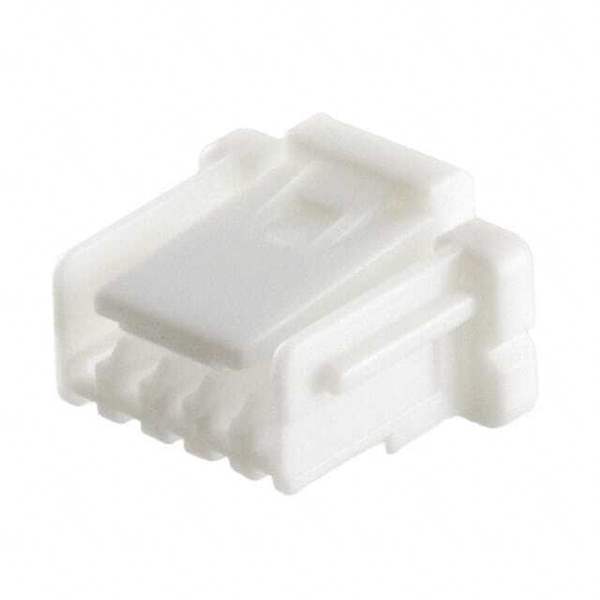

NSHR-05V-S

Name: NSHR-05V-S
Brand: JST Sales America Inc.
SKU: 850714
Availability: InStock
Rating: 4.93 (92 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NSHR-05V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 5POS 1.00MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	NSH
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	5
Pitch	0.039" (1.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	NSHR-05V
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	850714-NSHR-05V-S
Ultra Librarian 3D Model	Ultra Librarian NSHR-05V-S CAD Model

Alternative Products

Description

The 850714-NSHR-05V-S is a receptacle connector from the NSH series of rectangular connector housings.

Type: Female Socket Connector
Positions: 5
Mounting: Free Hanging (In-Line)
Lock: Latch Lock
Pitch: 0.039" (1.00mm)
Color: Natural
Contacts: Does not include contacts
Standard Package: 2,000 pcs
Temperature Range: -25°C to 85°C
Status: Active product
