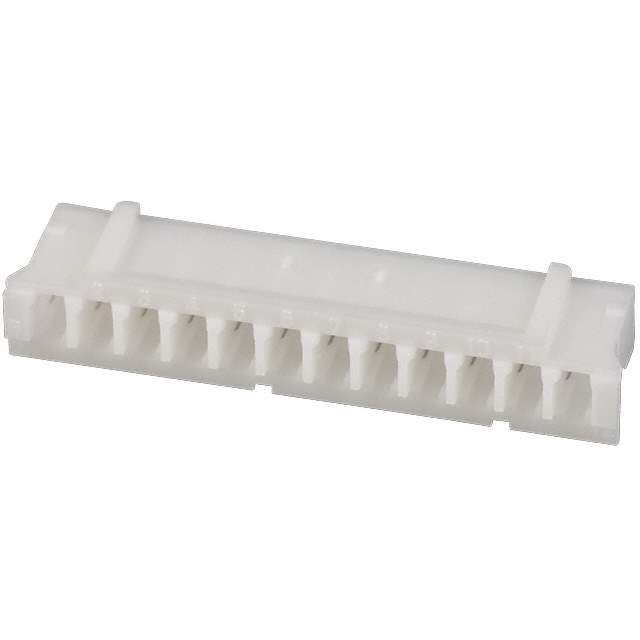

Same model may have multiple batches, images only for reference.

PHR-12

Name: PHR-12
Brand: JST Sales America Inc.
SKU: 1285294
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PHR-12
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	PH
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Detent Lock
Color	Natural
Note	Contacts Not Included
Base Product Number	PHR
Other Names	PHR12,455-1156,(W)PHR-12,(D)PHR-12(L)
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1285294-PHR-12
Ultra Librarian 3D Model	Ultra Librarian PHR-12 CAD Model

Alternative Products

Description

The 1285294-PHR-12 is a 12-position rectangular connector housing from JST Sales America Inc.

Positions: 12
Connector Type: receptacle
Contact Type: female socket
Package: bulk
Pitch: 0.079 inches
Fastening Type: detent lock
Insulating Material: polyamide (PA6T), Nylon 6T
Contacts Included: no
