Same model may have multiple batches, images only for reference.

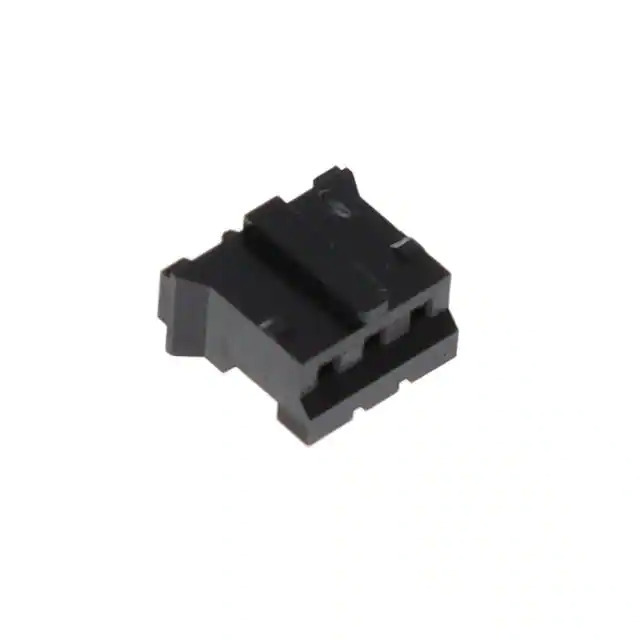

PHR-3-BK

Name: PHR-3-BK
Brand: JST Sales America Inc.
SKU: 1365217
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PHR-3-BK
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 3POS 2.00MM / 3 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	PH
Package	Box
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	3
Pitch	0.079" (2.00mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Detent Lock
Color	Black
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	PHR
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8538.90.8180
Win Source Part Number	1365217-PHR-3-BK
Ultra Librarian 3D Model	Ultra Librarian PHR-3-BK CAD Model

Alternative Products

Description

The PHR-3-BK is a rectangular connector housing from JST Sales America Inc.

Mounting Type: Free Hanging (In-Line)
Connector Type: Receptacle
Number of Positions: 3
Gender: Female Socket
Fastening Type: Detent Lock
Pitch: 0.079" (2.00mm)
Termination: Crimp
Color: Black
Operating Temperature: -25°C to 85°C
Series: PH
Packaging: Box
Note: Contacts are not included
