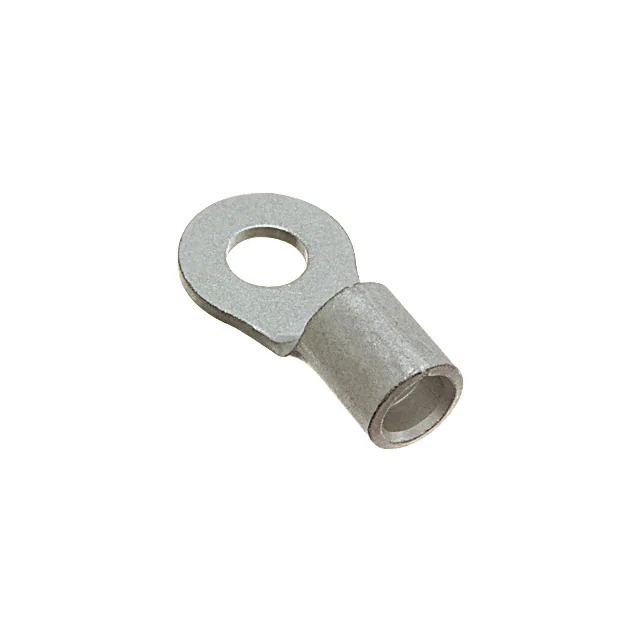

R8-5 JST Sales America Inc.
Same model may have multiple batches, images only for reference.

R8-5

Part No R8-5
Manufacturer JST Sales America Inc.
Catalog Terminals
Description CONN RING CRIMP 8 AWG #10 / Ring Terminal Connector 10 Stud D-Shaped 8 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr JST Sales America Inc.
Series -
Package Bulk
Product Status Active
Terminal Type D-Shaped
Stud/Tab Size 10 Stud
Thickness 0.047" (1.19mm)
Width - Outer Edges 0.472" (12.00mm)
Length - Overall 0.937" (23.80mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 8 AWG
Insulation Non-Insulated
Features Brazed Seam
Color -
Contact Material -
Contact Finish -
Insulation Diameter -
Material - Insulation -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1355350-R8-5
Ultra Librarian 3D Model Ultra Librarian R8-5 CAD Model

Description

The R8-5 is a ring terminal connector from JST Sales America Inc.

  • Type: Ring Terminal
  • Insulation: Non-Insulated
  • Shape: D-Shape
  • Stud/Tab Size: 10 Stud
  • Thickness: 0.047" (1.19mm)
  • Wire Gauge: 8 AWG
  • Overall Length: 0.937" (23.80mm)
  • Mounting: Free Hanging (In-Line)
  • Feature: Brazed Seam
  • REACH: Unaffected
  • Voltage Rating: Unspecified
