Same model may have multiple batches, images only for reference.

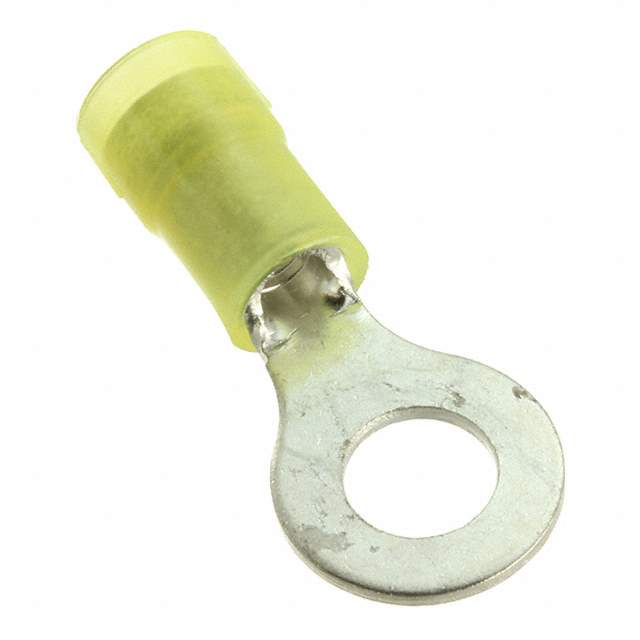

PNF10-14R-L Real Image
Same model may have multiple batches, images only for reference.

PNF10-14R-L

Part No PNF10-14R-L
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 10-12AWG #1/4 / Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
Datasheet
PNF10-14R-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.520" (13.21mm)
Length - Overall 1.210" (30.73mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.225" (3.05mm ~ 5.72mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number PNF10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names PNF10-14R-L-ND,298-15517
Standard Package 50
Win Source Part Number 1082026-PNF10-14R-L
Ultra Librarian 3D Model Ultra Librarian PNF10-14R-L CAD Model

Description

The Panduit Corp Pan-Term® terminal is a circular, insulated device that provides reliable and efficient connectivity for your electronic components.

  • Type: Terminal
  • Brand: Pan-Term®
  • Manufacturer: Panduit Corp
  • Shape: Circular
  • Insulation: Insulated
  • Connectivity: Reliable and efficient
  • Termination Feature: Serrated termination
  • Connector Type: Ring connector
  • Stud Size: 1/4
  • Compatibility: Cross-reference compatibility
