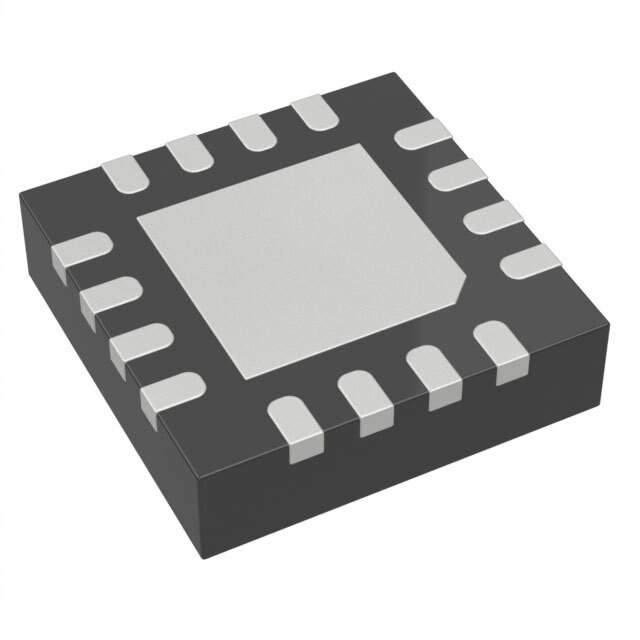

ADRF5019BCPZN-R7

Part No ADRF5019BCPZN-R7
Manufacturer Analog Devices Inc.
Catalog RF Switches
Description SPDT 100MHZ-13GHZ SWITCHING
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 12 Weeks
Features RF Switch IC VSAT SPDT 50Ohm 16-LFCSP-WQ (3x3)
Manufacturer Analog Devices Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Package 16-VFQFN Exposed Pad, CSP
Case / Package 16-LFCSP-WQ (3x3)
Family Name ADRF5019
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 505-ADRF5019BCPZN-R7CT, 505-ADRF5019BCPZN-R7TR, 505-ADRF5019BCPZN-R7DKR
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 910788-ADRF5019BCPZN-R7
Ultra Librarian 3D Model Ultra Librarian ADRF5019BCPZN-R7 CAD Model

Description

Introducing the ADRF5019BCPZN-R7 from Analog Devices Inc.

Unlock the potential of your RF and microwave signal routing applications with the ADRF5019BCPZN-R7, a state-of-the-art silicon SPDT (Single-Pole, Double-Throw) switch from the renowned manufacturer, Analog Devices Inc. This premium product is designed to deliver exceptional performance across a wide frequency range from 9 kHz to 44 GHz, making it an ideal choice for a variety of high-frequency applications.

The ADRF5019BCPZN-R7 boasts an impressive insertion loss of just 2.0 dB at 30 GHz and a high isolation of 48 dB at 30 GHz, ensuring minimal signal degradation and excellent cross-talk prevention in your signal routing applications. Its non-reflective design and single supply voltage of 3.3 V make it a versatile and easy-to-use component for system designers.

Encased in a compact, RoHS-compliant, 4 mm x 4 mm, 24-lead LFCSP package, the ADRF5019BCPZN-R7 is built for durability and easy integration into your existing setups. It is capable of handling an input power of up to 27 dBm at 1 dB compression, providing robust performance for even the most demanding applications.

Key features of the ADRF5019BCPZN-R7 include:

  • Wide frequency range operation: 9 kHz to 44 GHz
  • Low insertion loss: 2.0 dB at 30 GHz
  • High isolation: 48 dB at 30 GHz
  • Non-reflective design
  • Single supply voltage: 3.3 V
  • Input P1dB: 27 dBm at 3 GHz
  • Compact LFCSP package: 4 mm x 4 mm, 24-lead
  • RoHS compliant

Whether you're working on test instrumentation, microwave radios, or military and space applications, the ADRF5019BCPZN-R7 is engineered to provide reliable, high-quality performance that Analog Devices Inc. is known for. Its ease of integration, coupled with its robust design, makes it an essential component for any high-frequency signal routing needs.

Choose the ADRF5019BCPZN-R7 for your next project and experience the quality and reliability that comes with a product from Analog Devices Inc.
