Same model may have multiple batches, images only for reference.

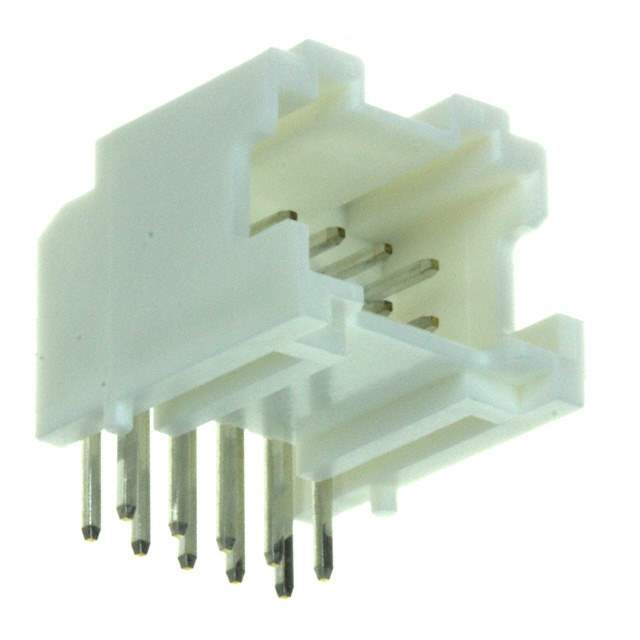

S10B-PADSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S10B-PADSS-1(LF)(SN)

Part No S10B-PADSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Manufacturer JST Sales America Inc.
Series PAD
Package Tray
Operating Temperature Range -25°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name S10B-PAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number (D)S10B-PADSS-1(LF)(SN), S10BPADSS1LFSN, 455-2032
Quantity per package 504
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932587-S10B-PADSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S10B-PADSS-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. 932587-S10B-PADSS-1(LF)(SN) connector header is a through hole, right angle 10 position 0.079" (2.00mm) connector.

  • Series: PAD
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Number of Positions: 10
  • Pitch: 0.079" (2.00mm)
  • Temperature Range: -25°C to 85°C
  • Package: Tray
  • Family Name: S10B-PAD
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Package Quantity: 504 Units
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 33 Weeks
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: (D)S10B-PADSS-1(LF)(SN), S10BPADSS1LFSN, and 455-2032
