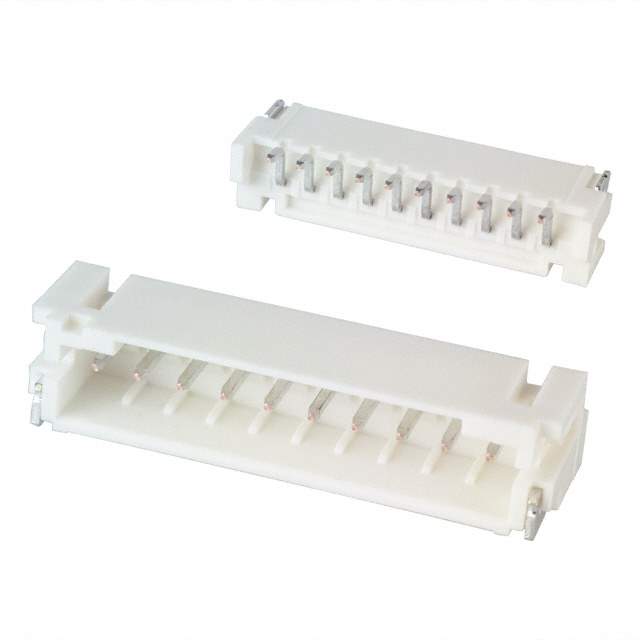

S10B-PH-SM3-TB Real Image
Same model may have multiple batches, images only for reference.

S10B-PH-SM3-TB

Part No S10B-PH-SM3-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 2MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808511-S10B-PH-SM3-TB
Ultra Librarian 3D Model Ultra Librarian S10B-PH-SM3-TB CAD Model

Description

The 808511-S10B-PH-SM3-TB connector from JST Sales America Inc. is a surface mount, right angle type connector.

  • Pitch-Mating: 0.079 inches (2.00mm)
  • Insulation Material: Polyamide (PA46) and nylon 4/6
  • Contact Finish-Mating: Tin-lead
  • Contact Finish-Post: Tin-lead
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Fastening Type: Detent lock
  • Shrouded: 4 walls
  • Insulation Height: 0.217 inches (5.51mm)
  • Contact Shape: Square
