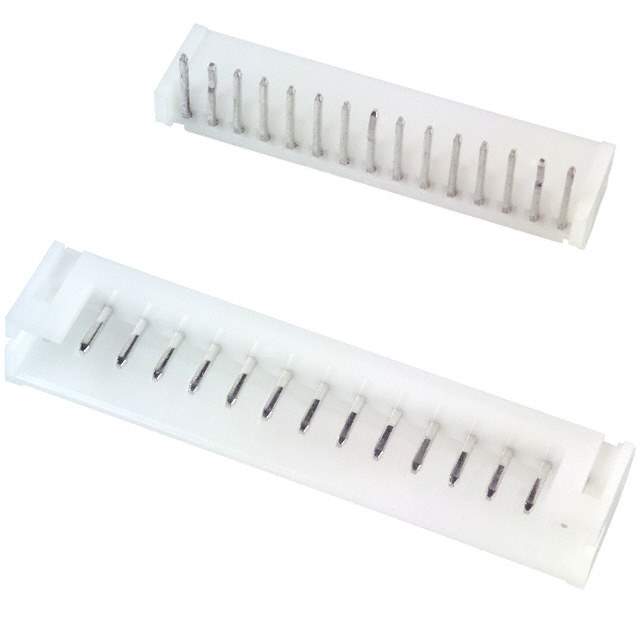

S15B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S15B-PH-K-S(LF)(SN)

Part No S15B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH SIDE 15POS 2MM / Conn Shrouded Header HDR 15 POS 2mm Solder RA Thru-Hole Box
Datasheet
S15B-PH-K-S(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 15
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 4.8mm
Win Source Part Number 793514-S15B-PH-K-S(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date December 04, 2012
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian S15B-PH-K-S(LF)(SN) CAD Model

Description

The JST Sales America Inc. S15B-PH-K-S(LF)(SN) is a 15-position male pin header connector.

  • Connection Type: Board to cable/wire
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Shrouding: 4 walls
  • Fastening Type: Detent lock
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Contact Material: Brass
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Insulation Color: Natural
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Mounting: Through hole, right angle
