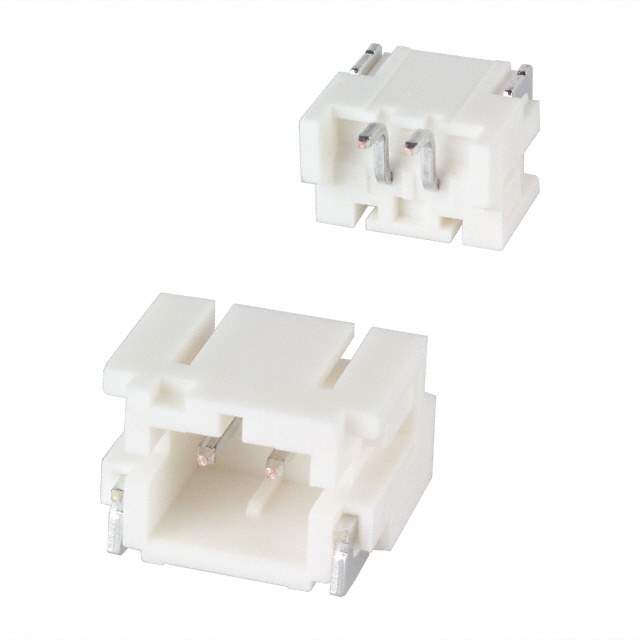

S2B-PH-SM4-TB

Name: S2B-PH-SM4-TB
Brand: JST Sales America Inc.
SKU: 306505
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S2B-PH-SM4-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER PH SIDE 2POS 2MM SMD
Datasheet	S2B-PH-SM4-TB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Insulation Height	0.217" (5.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	Solder Retention
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	2A
Voltage Rating	100V
Mated Stacking Heights	5.5mm
Win Source Part Number	306505-S2B-PH-SM4-TB
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	PH
Introduction Date	October 18, 2005
ECCN	EAR99
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian S2B-PH-SM4-TB CAD Model

Description

The 306505-S2B-PH-SM4-TB is a surface mount header connector that has two positions and can accommodate 2A current rating and 100V voltage rating from JST Sales America Inc.

Connector Type: Male Pin
Contact Termination: Solder
Fastening Type: Detent Lock
Insulation Material: Polyamide (PA6T), Nylon 6T
Package: Reel-TR
Demand: High
