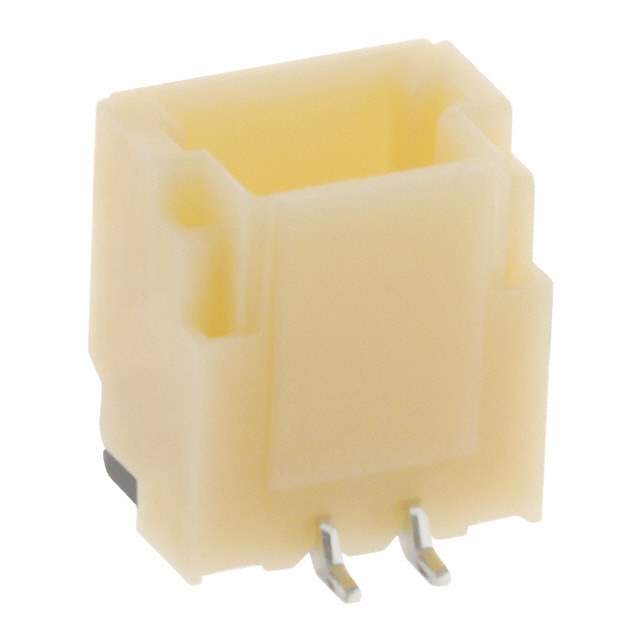

BM02B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02B-SRSS-TB(LF)(SN)

Part No BM02B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 2POS TOP 1MM TIN
Datasheet
BM02B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SR
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 717949-BM02B-SRSS-TB(LF)(SN)
Family Name SH
Introduction Date December 01, 2005
ECCN EAR99
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM02B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. SR series header connector is a male pin type connector with a pitch of 0.039 inches (1.00mm) and a voltage rating of 50V.

  • Pitch: 0.039 inches (1.00mm)
  • Voltage Rating: 50V
  • Fastening Type: Push-pull
  • Termination: Solder
  • Shrouded: 4 walls
  • Current Rating: 0.7A
  • Mated Stacking Height: 4.9mm
  • Insulation Material: Polyamide (PA) and nylon
  • Contact Material: Copper alloy
  • Application: Board to cable/wire
  • Material Flammability Rating: UL94 V-0
  • Manufacturer: JST Sales America Inc.
