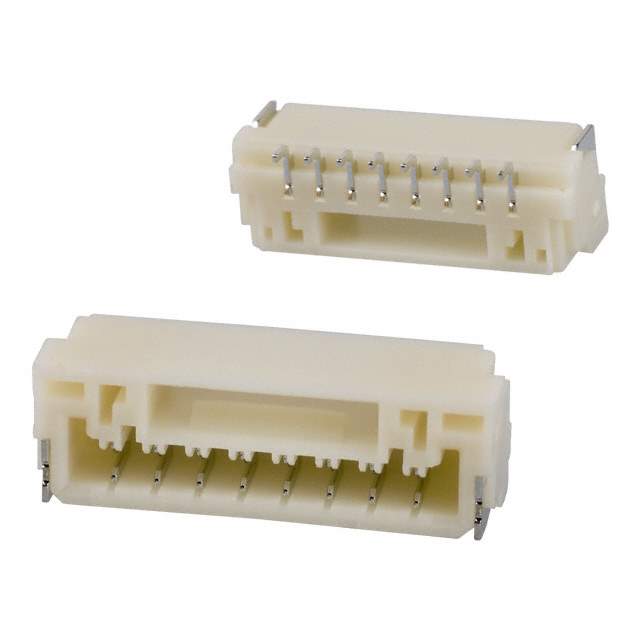

SM08B-GHS-TB(LF)(SN)

Part No SM08B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH SIDE 8POS 1.25MM
Datasheet
SM08B-GHS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167" (4.25mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 4.35mm
Win Source Part Number 1096893-SM08B-GHS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM08B-GHS-TB(LF)(SN) CAD Model

Description

The SM08B-GHS-TB(LF)(SN) series 1096893-SM08B-GHS-TB(LF)(SN) header connector is designed for board-to-cable/wire applications manufactured by JST Sales America Inc..

  • Fastening Type: locking ramp
  • Mounting Type: surface mount, right angle
  • Positions: eight
  • Pitch: 0.049" (1.25mm)
  • Insulation Color: natural
  • Material: polyamide (PA9T), Nylon 9T
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Shrouded: with 4 walls
  • Contact Finish Thickness: none
  • Sold in: reels of 3000
