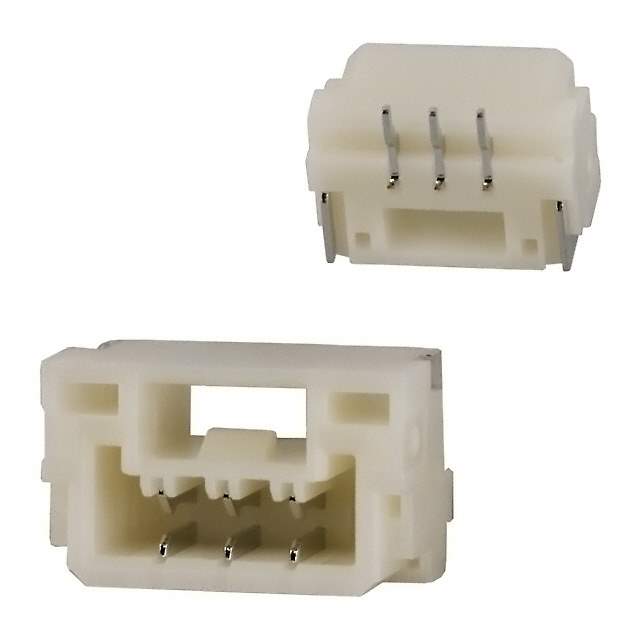

BM03B-GHS-TBT(LF)(SN)(N) Real Image
Same model may have multiple batches, images only for reference.

BM03B-GHS-TBT(LF)(SN)(N)

Part No BM03B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH TOP 3POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series GH
Packaging Reel - TR
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Win Source Part Number 744875-BM03B-GHS-TBT(LF)(SN)(N)
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BM03B-GHS-TBT(LF)(SN)(N) CAD Model

Description

The GH series header connector is a reliable and efficient component for your electronic projects.

  • Packaging: reel-TR
  • Positions: 3
  • Operating Temperature Range: -25°C ~ 85°C
  • Features: Pick and place, solder retention
  • Connector Type: Outer shroud contact
  • Contact Material: Phosphor bronze
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Mated Stacking Heights: 7.3mm
  • Material Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.049 inches
  • Contact Finish-Mating: tin
  • Contact Finish-Post: tin
  • ECCN: EAR99
  • Estimated EOL Date: 2028
  • Supply and Demand Status: Limited
  • Manufacturer: JST Sales America Inc.
