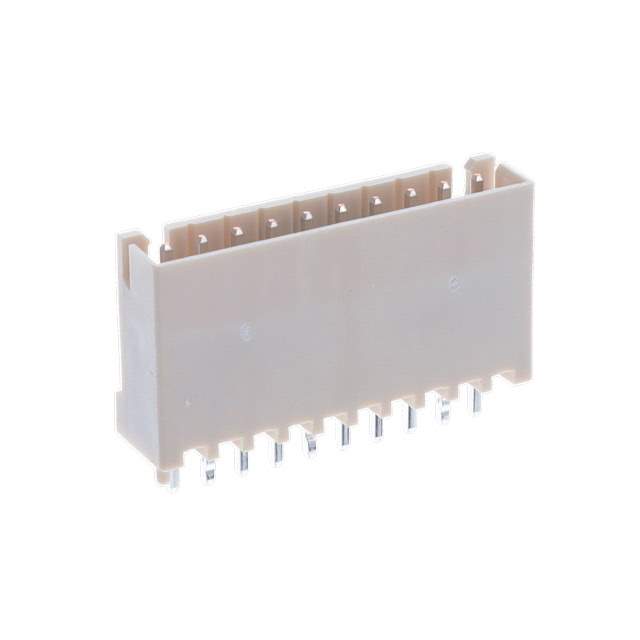

BH10B-XH-2(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BH10B-XH-2(LF)(SN)

Part No BH10B-XH-2(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.5MM / Connector Header Through Hole 10 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.559" (14.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A (AC/DC)
Voltage Rating 250VAC/DC
Base Product Number BH10B-XH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-BH10B-XH-2(LF)(SN)
Standard Package 150
Win Source Part Number 1049235-BH10B-XH-2(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BH10B-XH-2(LF)(SN) CAD Model

Description

The JST Sales America Inc. XH Header is a square male pin connector designed for board to cable/wire applications.

  • Positions: 10
  • Pitch: 0.098 inches (2.50mm)
  • Fastening Type: Detent lock
  • Package: Bulk
  • Current Rating: 3A (AC/DC)
  • Voltage Rating: 250VAC/DC
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Shrouded: 4 walls
  • Standard Package: 150
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
