Same model may have multiple batches, images only for reference.

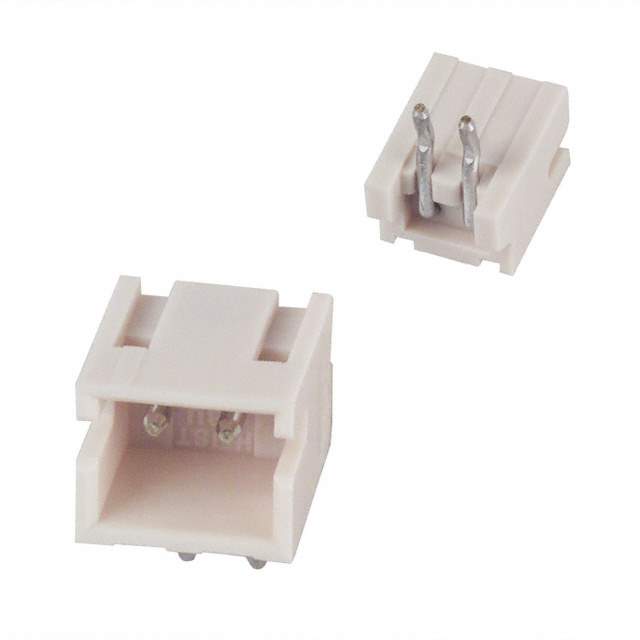

S2B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S2B-ZR(LF)(SN)

Part No S2B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 712004-S2B-ZR(LF)(SN)
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S2B-ZR(LF)(SN) CAD Model

Description

The JST Sales America Inc. 712004-S2B-ZR(LF)(SN) is a connector from JST Sales America Inc..

  • Positions: 2
  • Mounting Style: Right-Angle Through Hole
  • Connection: Board to Cable/Wire
  • Material: Brass, Tin Plating
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Flammability: UL94 V-0
  • Shrouding: Shrouded (4 Walls)
  • Fastening Type: Detent Lock
  • Operating Temperature: -25°C to 85°C
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
