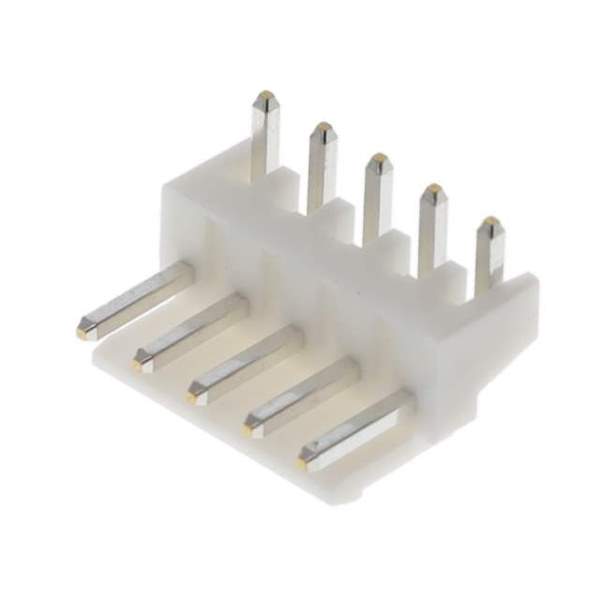

S5P-VH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S5P-VH(LF)(SN)

Part No S5P-VH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 3.96MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805700-S5P-VH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S5P-VH(LF)(SN) CAD Model

Description

The JST Sales America Inc. 805700-S5P-VH(LF)(SN), from JST Sales America Inc., header connector is a through-hole, right-angle connector with 5 positions and male pins.

  • Positions: 5
  • Contact Type: Male Pins
  • Mounting Style: Through Hole, Right Angle
  • Features: Locking Ramp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Operating Temperature: -25°C to 85°C
  • Design: Shrouded, One Wall
  • Applications: Board-to-Cable/Wire
  • Packaging: Bulk
  • Popularity: Medium
  • Supply and Demand Status: Balanced
