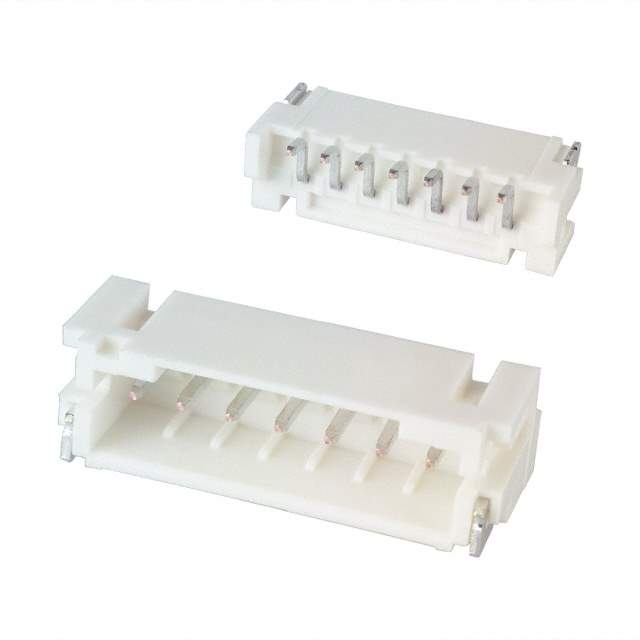

S7B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S7B-PH-SM4-TB(LF)(SN)

Part No S7B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810740-S7B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S7B-PH-SM4-TB(LF)(SN) CAD Model

Description

The S7B-PH-SM4-TB(LF)(SN) is a connector header manufactured by JST Sales America Inc.

  • Number of Positions: 7
  • Mounting Style: Surface Mount, Right Angle
  • Contact Type: Male Pin
  • Termination: Solder
  • Current Rating (Amps): 2A
  • Voltage Rating: 100V
