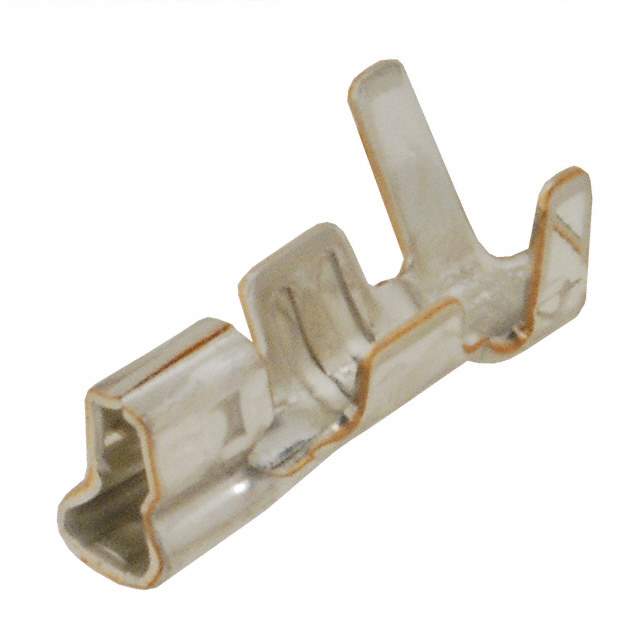

The SEH-001T-P0.6 is a crimp style wire-to-board, insulation displacement connector (IDC) contact manufactured by JST Sales America Inc. It is designed for use in the SEH series connector system, providing a reliable and secure electrical connection for small electronic devices and equipment.

Applications:

• Consumer electronics
• Industrial control systems
• Office automation equipment
• Medical devices
• Telecommunications equipment

Features:

• Crimp style contact for secure wire termination
• Insulation displacement contact (IDC) technology for quick and easy assembly
• Designed for use with the SEH series connector housings
• Compact design for high-density applications
• Tin-plated for corrosion resistance and solderability

Benefits:

• Provides a reliable and secure electrical connection
• Reduces assembly time and costs due to IDC technology
• Enables high-density packaging in compact electronic devices
• Ensures long-term performance in harsh environments
• Facilitates easy maintenance and repair

Additional Details:

The SEH-001T-P0.6 contact accepts a wire range of AWG #28 to #32. It has a current rating of 0.5A AC,DC and a voltage rating of 50V AC,DC. The contact material is phosphor bronze with tin plating. It is RoHS compliant.

The SEH series connectors are designed for use in a wide range of applications, including those where space is limited. The IDC design allows for easy termination of wires without the need for stripping or soldering. This makes the SEH-001T-P0.6 an ideal choice for high-volume production environments.

Proper crimping tools are required to ensure a reliable and gas-tight connection. JST provides a range of crimping tools specifically designed for use with the SEH series contacts.
