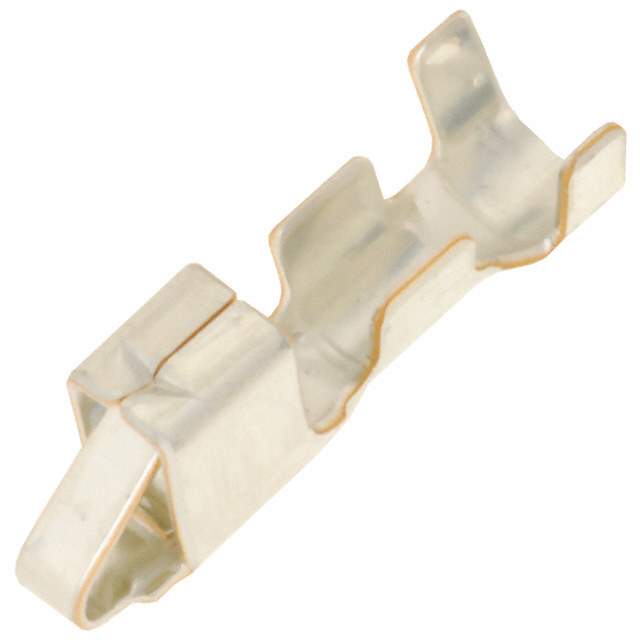

The SHF-001T-0.8BS is a crimp style socket contact manufactured by JST Sales America Inc. It is part of the SH series of connectors, known for their compact size and reliable performance in high-density applications.

Applications:

• Signal circuits: Used for connecting signal wires in electronic devices.
• Internal wiring of electronic equipment: Connects various internal components within devices such as computers and audio equipment.
• Board-to-wire connections: Provides a secure connection between a wire and a printed circuit board.
• Consumer electronics: Used extensively in smartphones, tablets, and other consumer electronic devices.
• Industrial control systems: Employed in control panels and other industrial equipment.

Features:

• Crimp connection: Provides a reliable and gas-tight connection when properly crimped.
• Compact size: Allows for high-density connections in small spaces.
• Secure locking mechanism: Ensures a stable and secure connection.
• Phosphor bronze material: Provides excellent conductivity and durability.
• Tin plating: Offers corrosion resistance and improved solderability.

Benefits:

• Reliable connection: Ensures consistent signal transmission.
• Space saving: Allows for smaller and more compact designs.
• Ease of assembly: Can be easily crimped using standard crimping tools.
• Long-lasting performance: Provides durable and reliable connections over time.
• Reduced downtime: Minimizes the risk of connection failures.

Additional Details:

The SHF-001T-0.8BS is designed for use with 0.8mm pitch SH series connectors. It supports wire gauges ranging from 30 AWG to 28 AWG. The contact is made from phosphor bronze with tin plating to ensure excellent conductivity and corrosion resistance. It is RoHS compliant, indicating it meets environmental standards. The crimp style connection offers a strong and durable termination, ensuring reliable performance in demanding applications. The compact design allows for high-density packaging, making it ideal for use in space-constrained devices. It is frequently used in applications that require a secure and dependable wire-to-board connection.
