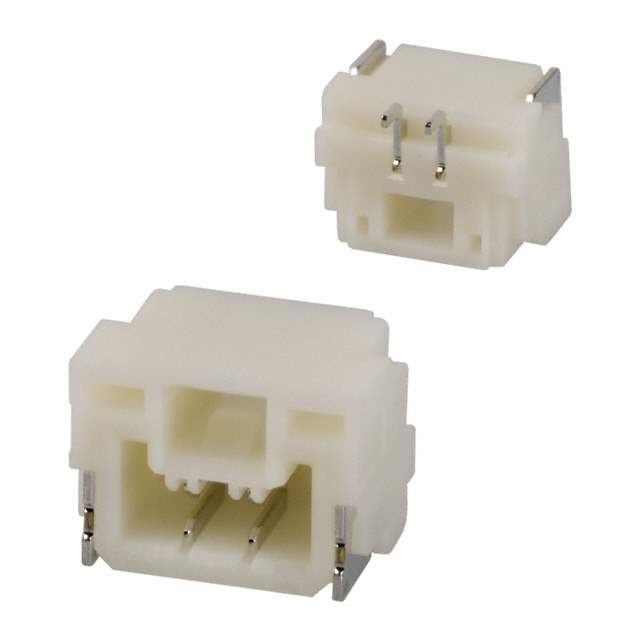

SM02B-GHS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM02B-GHS-TB(LF)(SN)

Part No SM02B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049"
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167"
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804144-SM02B-GHS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM02B-GHS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. electronic component SM02B-GHS-TB(LF)(SN) is a header connector that is designed for use in electronic devices.

  • Positions: 2
  • Mounting: Surface Mount, Right Angle
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Application: Board to Cable/Wire
  • Material: Polyamide (PA9T), Nylon 9T
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 2,500
