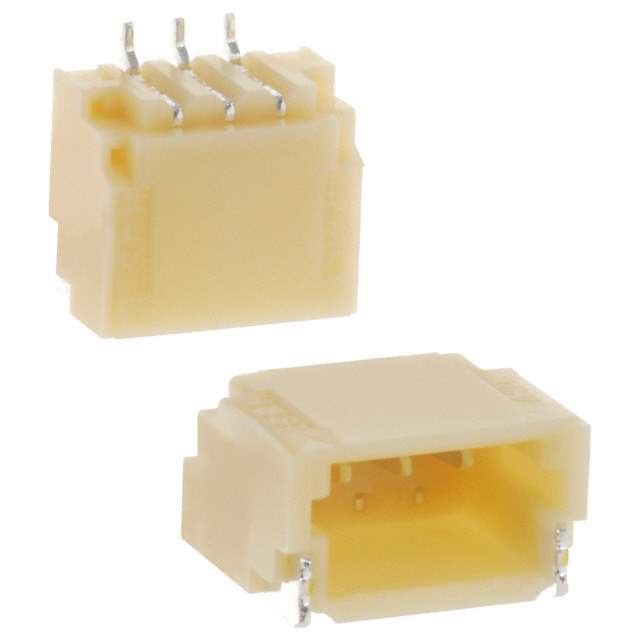

SM03B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM03B-SRSS-TB(LF)(SN)

Part No SM03B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 3POS SIDE 1MM TIN
Datasheet
SM03B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 2.95mm
Win Source Part Number 122101-SM03B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SM03B-SRSS-TB(LF)(SN) CAD Model

Description

JST Sales America Inc. manufactures high-quality connectors and interconnects, and the 122101-SM03B-SRSS-TB(LF)(SN) is no exception.

  • Product Type: Medium-popularity product
  • Supply and Demand Status: Sufficient
  • Application: Versatile connector suitable for board to cable/wire applications.
  • Pitch-Mating: 0.039" (1.00mm)
  • Voltage Rating: 50V
  • Connector Type: Header
  • Contact Type: Male pin
  • Number of Positions: 3
  • Positions Loaded: All
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), nylon
  • Shrouded: 4 walls
  • Temperature Range: -25°C to 85°C
