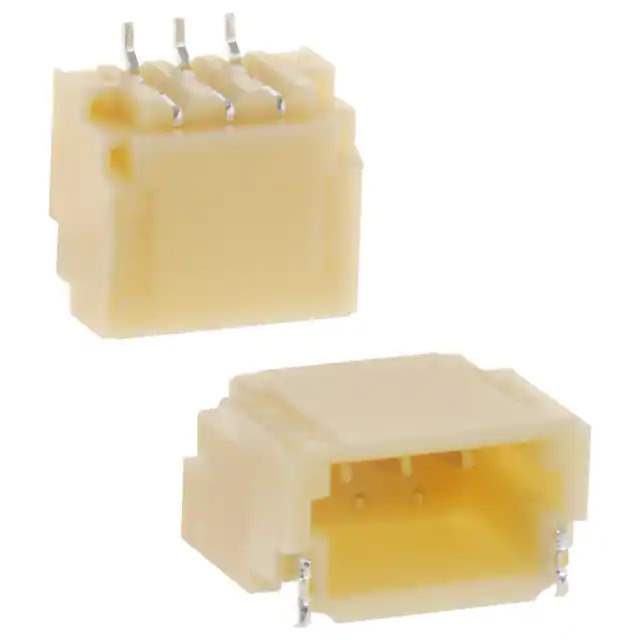

Same model may have multiple batches, images only for reference.

SM03B-SRSS-TB

Name: SM03B-SRSS-TB
Brand: JST Sales America Inc.
SKU: 749306
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM03B-SRSS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 3POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	SH/SR
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.114" (2.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	749306-SM03B-SRSS-TB
Ultra Librarian 3D Model	Ultra Librarian SM03B-SRSS-TB CAD Model

Alternative Products

Description

The 749306-SM03B-SRSS-TB is a male pin header connector from the SH/SR series.

Features: solder retention design
Positions: 3
Contact Material: copper alloy
Voltage Rating: 50V
Applications: board to cable/wire
Pitch: 0.039" (1.00mm)
Contact Finish (Mating): tin-lead
Contact Finish (Post): tin-lead
Mounting Type: surface mount and right angle
Shrouded: with 4 walls
Operating Temperature Range: -25°C to 85°C
Packaging: tape & reel or cut tape
Standard Package: 3,000 pcs
