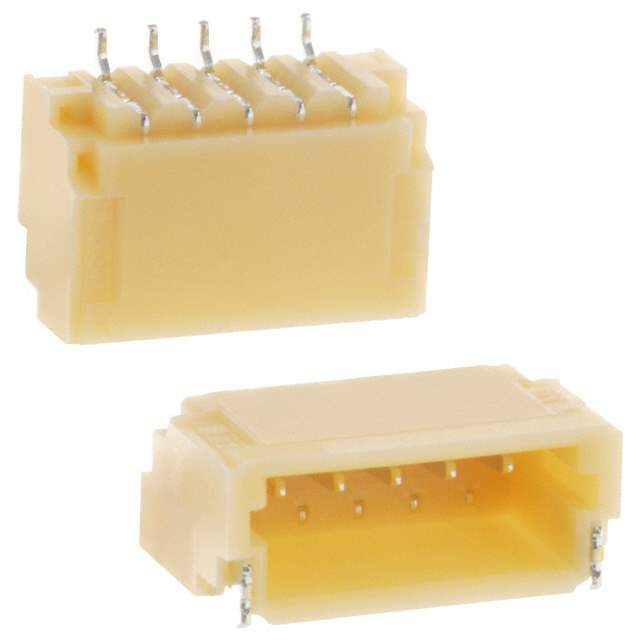

SM05B-SRSS-TB(LF)(SN) Real Image1 SM05B-SRSS-TB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
SM05B-SRSS-TB(LF)(SN) Real Image1 SM05B-SRSS-TB(LF)(SN) Real Image2
SM05B-SRSS-TB(LF)(SN) Real Image1 SM05B-SRSS-TB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM05B-SRSS-TB(LF)(SN)

Part No SM05B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 5POS SIDE 1MM TIN
Datasheet
SM05B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 2.95mm
Win Source Part Number 064752-SM05B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SM05B-SRSS-TB(LF)(SN) CAD Model

Description

The 064752-SM05B-SRSS-TB(LF)(SN) is a 5-position header connector manufactured by JST Sales America Inc.

  • Mounting: Surface mount, right-angle connector
  • Features: Solder retention and a shrouded 4-wall design
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Insulation Material: Polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • Applications: Perfect for board-to-cable/wire applications
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Finish: Tin
  • Insulation Color: Natural
  • Supply and Demand Status: Limited
