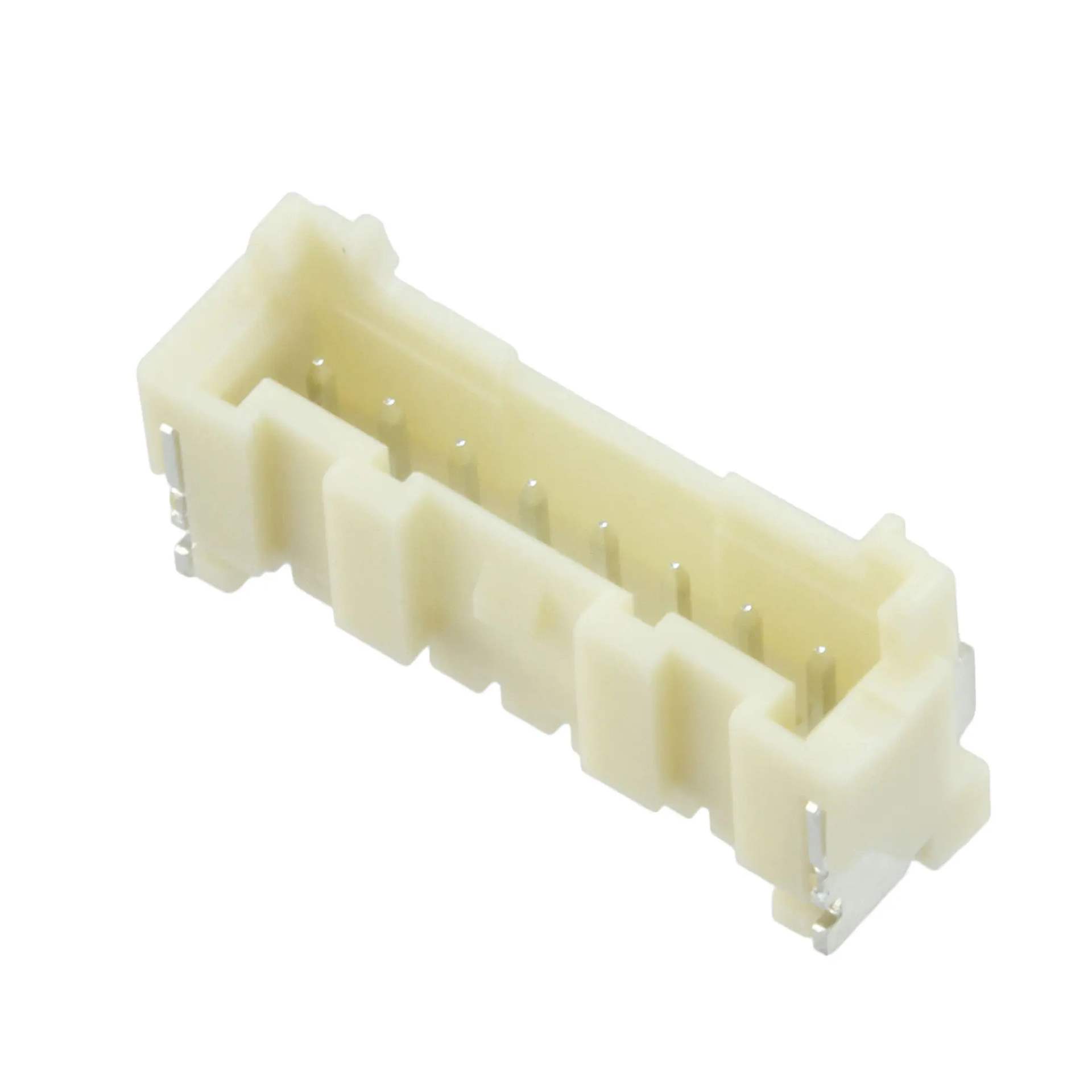

SM08B-PASS-TBT(LF)(SN)

Part No SM08B-PASS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 2MM / Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224" (5.69mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number SM08B-PA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849562-SM08B-PASS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM08B-PASS-TBT(LF)(SN) CAD Model

Description

The 849562-SM08B-PASS-TBT(LF)(SN) is a male pin header connector from the PA series of rectangular connectors by Hirose Electric Co Ltd.

  • Positions: 8
  • Rows: Single
  • Contact Material: Copper alloy
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Pitch: 0.079 inches (2.00mm)
  • Termination: Solder
  • Features: Locking ramp
  • Packaging: Tape and reel
