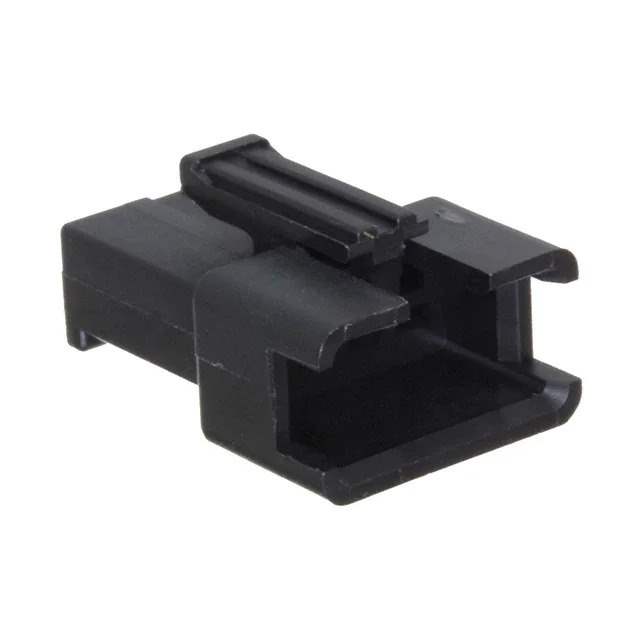

SMR-04V-B Real Image
Same model may have multiple batches, images only for reference.

SMR-04V-B

Part No SMR-04V-B
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 4POS 2.50MM / 4 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series SM
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 4
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number SMR-04V
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 934422-SMR-04V-B
Ultra Librarian 3D Model Ultra Librarian SMR-04V-B CAD Model

Description

The 934422-SMR-04V-B is a rectangular connector housing from JST Sales America Inc.

  • Series: SM
  • Positions: 4
  • Pitch: 0.098" (2.50mm)
  • Color: black
  • Fastening type: latch lock
  • Connector type: receptacle
  • Contact type: male pin
  • Row design: single row
  • Termination: crimping
  • Contacts: not included
  • Operating temperature range: -25°C to 85°C
  • MSL level: 1 (unlimited)
  • HTSUS code: 8538.90.6000
  • Product status: active
