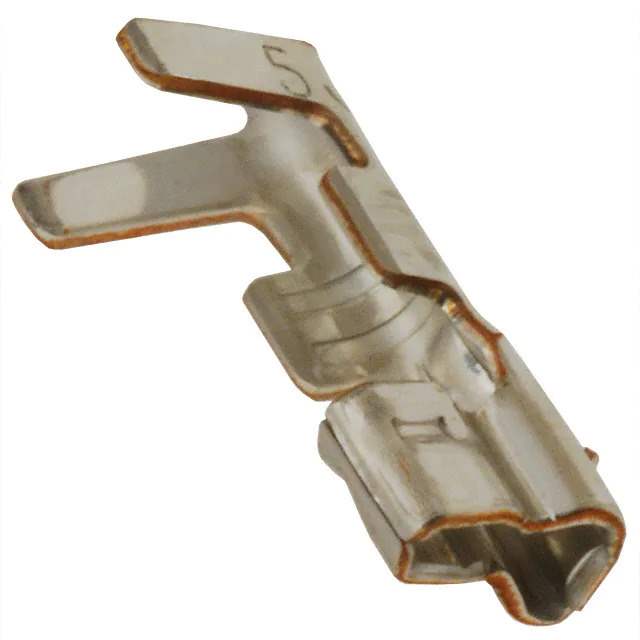

SPH-002T-P0.5S Real Image
Same model may have multiple batches, images only for reference.

SPH-002T-P0.5S

Part No SPH-002T-P0.5S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 24-30AWG CRIMP TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 24-30 AWG
Contact Finish Tin
Base Product Number SPH-002
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 850803-SPH-002T-P0.5S
Ultra Librarian 3D Model Ultra Librarian SPH-002T-P0.5S CAD Model

Description

The 850803-SPH-002T-P0.5S is a socket connector from the PH series. It is manufactured by JST Sales America Inc.

  • Connector Type: Socket
  • Series: PH
  • Termination Type: Crimp
  • Wire Gauge: 24-30 AWG
  • Contact Finish: Tin
  • Packaging: Tape & Reel or Cut Tape
  • Standard Package: 8,000 pcs
  • Operating Temperature: -25°C to 85°C
