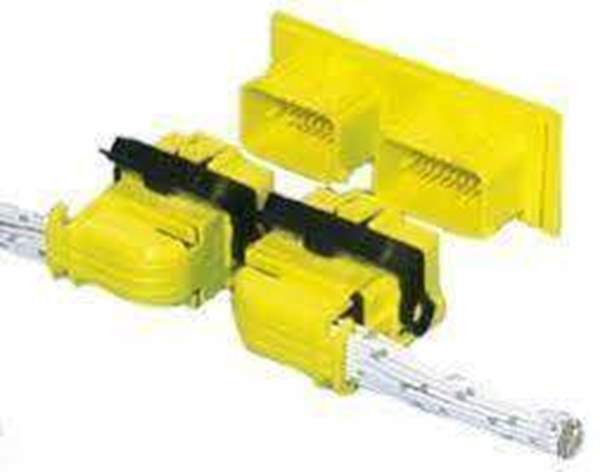

Same model may have multiple batches, images only for reference.

WPHDP-H-1A-H

Name: WPHDP-H-1A-H
Brand: JST Sales America Inc.
SKU: WS1308234
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WPHDP-H-1A-H
Manufacturer	JST Sales America Inc.
Catalog	Automotive Connectors
Description	Automotive Connectors WIC Dummy Plug
Datasheet	WPHDP-H-1A-H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1308234-WPHDP-H-1A-H
Category	Automotive Connectors
Manufacturer	JST Automotive
Color	Gray
Packaging	Bulk
Housing Material	Polybutylene Terephthalate (PBT)
Length	10.7 mm
Operating Temperature (Max)	+ 120 C
Operating Temperature (Min)	- 40 C
Outside Diameter	1.85 mm
Product Type	Automotive Connectors
Ultra Librarian 3D Model	Ultra Librarian WPHDP-H-1A-H CAD Model

Alternative Products

Description

3 pieces structure The case mounted male connector connects inside and outside of the case with harness.
Sealed Only attaching male connector to case body, it ensures waterproof performance. Double seal structure of surface and shaft seal realizes the strong waterproof property.
Variation Lineup of 10, 27 and 36 circuits. Terminal plating is selectable from gold-plated or tin-plated.
