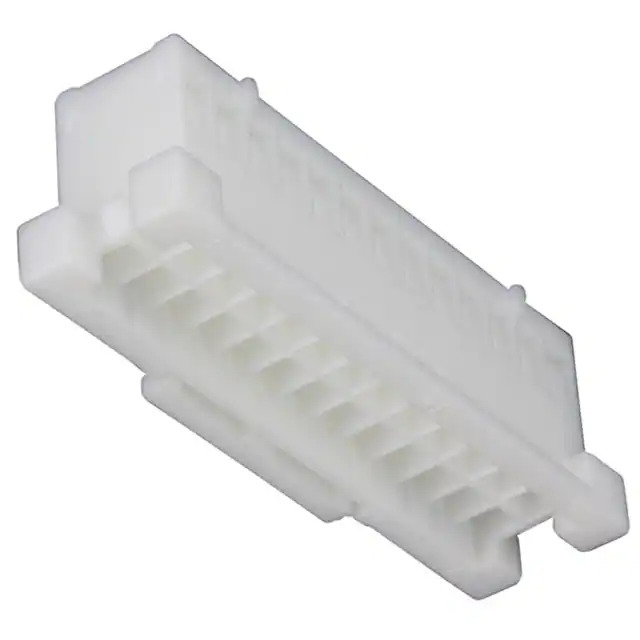

Same model may have multiple batches, images only for reference.

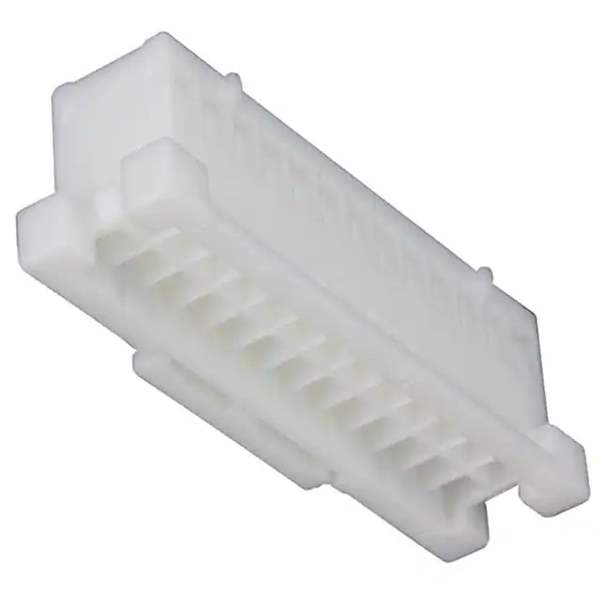

XADRP-26V

Name: XADRP-26V
Brand: JST Sales America Inc.
SKU: 1365969
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	XADRP-26V
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 26POS 2.50MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	XAD
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	26
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	0.098" (2.50mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	XADR
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365969-XADRP-26V
Ultra Librarian 3D Model	Ultra Librarian XADRP-26V CAD Model

Alternative Products

Description

The XADRP-26V is a rectangular connector housing manufactured by JST Sales America Inc.

Connector Type: Receptacle
Number of Positions: 26
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Locking Feature: Latch Lock
Contact Termination: Crimp
Contact Gender: Female Socket
Pitch: 0.098 inches (2.50mm)
Row Spacing: 0.098 inches (2.50mm)
Color: Natural
Series: XAD
Temperature Range: -25°C to 85°C
Note: Contacts not included
