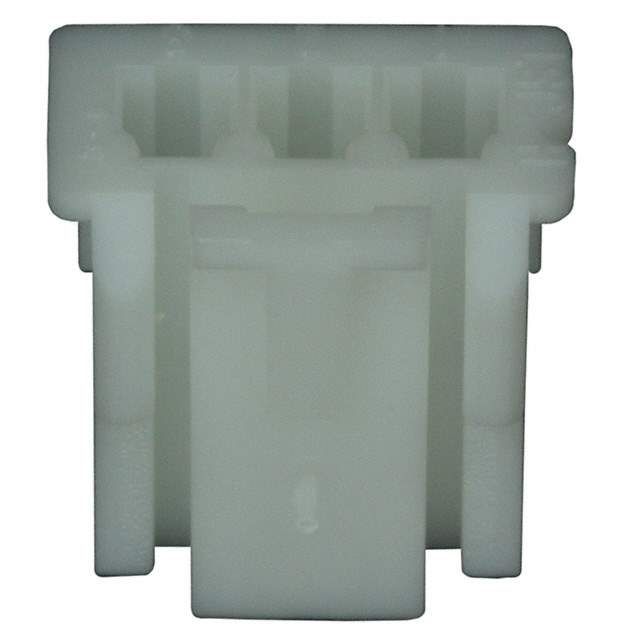

XAP-03V-1 Real Image
Same model may have multiple batches, images only for reference.

XAP-03V-1

Part No XAP-03V-1
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number XAP
Other Names 455-2149,XAP-03V-1(P),XAP03V1P,XAP-03V-1
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1285276-XAP-03V-1
Ultra Librarian 3D Model Ultra Librarian XAP-03V-1 CAD Model

Description

The JST Sales America Inc. XAP-03V-1 is a 3-position rectangular connector housing that is part of the XA series.

  • Positions: 3
  • Connector Type: receptacle
  • Contact Type: female socket
  • Fastening Type: latch lock
  • Pitch: 0.098" (2.50mm)
  • Color: natural
  • Mounting Type: free hanging (in-line)
  • Contact Termination: crimp
