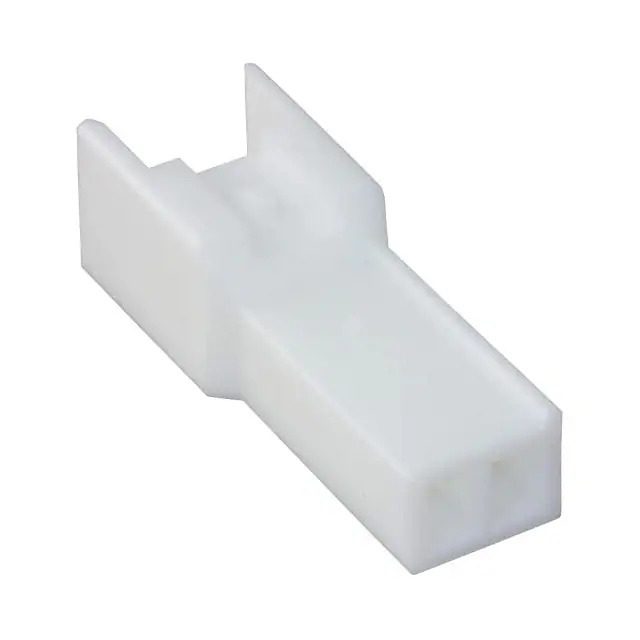

XARR-02VF JST Sales America Inc.
Same model may have multiple batches, images only for reference.

XARR-02VF

Part No XARR-02VF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 2POS 2.50MM / 2 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Datasheet
XARR-02VF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series XA
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 2
Pitch 0.098" (2.50mm)
Number of Rows 1
Row Spacing -
Mounting Type Panel Mount
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number XARR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1354594-XARR-02VF
Ultra Librarian 3D Model Ultra Librarian XARR-02VF CAD Model

Description

The XARR-02VF is a rectangular connector housing from JST Sales America Inc.

  • Connector Type: Receptacle
  • Mounting Type: Panel Mount
  • Number of Positions: 2
  • Number of Rows: 1
  • Locking Type: Latch Lock
  • Pitch: 0.098" (2.50mm)
  • Temperature Range: -25°C to 85°C
  • Color: Natural
  • Contact Termination: Crimp
  • Contacts Included: No
  • Series: XA
  • Packaging: Bulk
