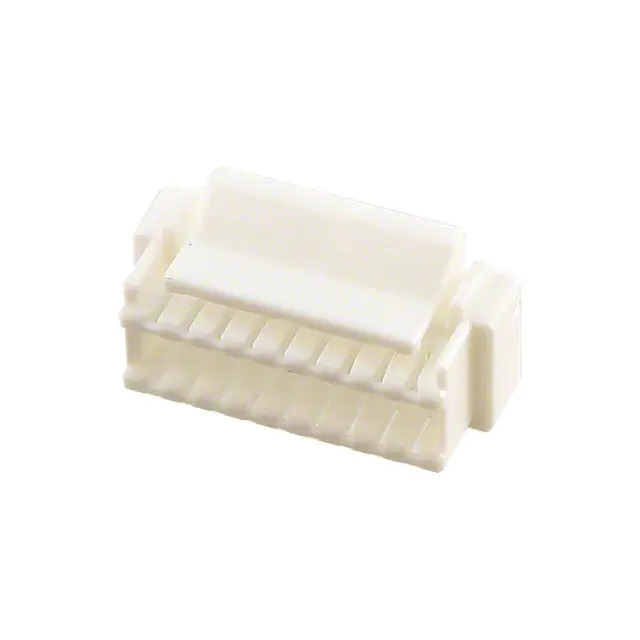

ZPDR-18V-S JST Sales America Inc.
Same model may have multiple batches, images only for reference.

ZPDR-18V-S

Part No ZPDR-18V-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 18POS 1.50MM / 18 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
Datasheet
ZPDR-18V-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series ZPD
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 18
Pitch 0.059" (1.50mm)
Number of Rows 2
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number ZPDR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1352874-ZPDR-18V-S
Ultra Librarian 3D Model Ultra Librarian ZPDR-18V-S CAD Model

Description

The ZPDR-18V-S is a rectangular connector housing manufactured by JST Sales America Inc.

  • Connector Type: Free Hanging (In-Line)
  • Pitch: 0.059" (1.50mm)
  • Connector Type: Receptacle
  • Number of Positions: 18
  • Number of Rows: 2
  • Fastening Type: Latch Lock
  • Color: Natural
  • Contact Termination: Crimp
  • Contacts Included: No
  • Operating Temperature: -25°C to 85°C
  • MSL: 1 (Unlimited)
  • ECCN: EAR99
