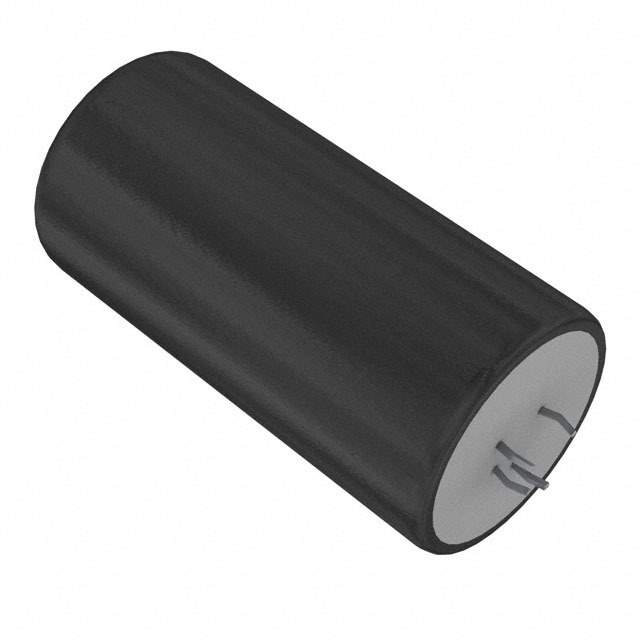

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series ALC10
Package Bulk
Capacitance 15000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 44mOhm @ 100Hz
Lifetime @ Temp. 18000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 7.02 A @ 100 Hz
Ripple Current @ High Frequency 7.18 A @ 10 kHz
Impedance 39 mOhms
Lead Spacing 0.886" (22.50mm)
Dimension 1.575" Dia (40.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In - 4 Lead
Base Product Number ALC10C
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0055
Other Names 399-5658,A521HH153M063C
Standard Package 150
Win Source Part Number 1154801-ALC10C153EF063
Ultra Librarian 3D Model Ultra Librarian ALC10C153EF063 CAD Model

Description

This aluminum electrolytic capacitor has a capacitance of 15000μF with a tolerance of ±20%.

  • Capacitance: 15000μF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • Impedance: 39mOhm
  • ESR: 44mOhm @ 100Hz
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can-Snap-In-4-Lead
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 1.575 inches in diameter (40.00mm)
  • Series: ALC10
  • Manufacturer: KEMET
