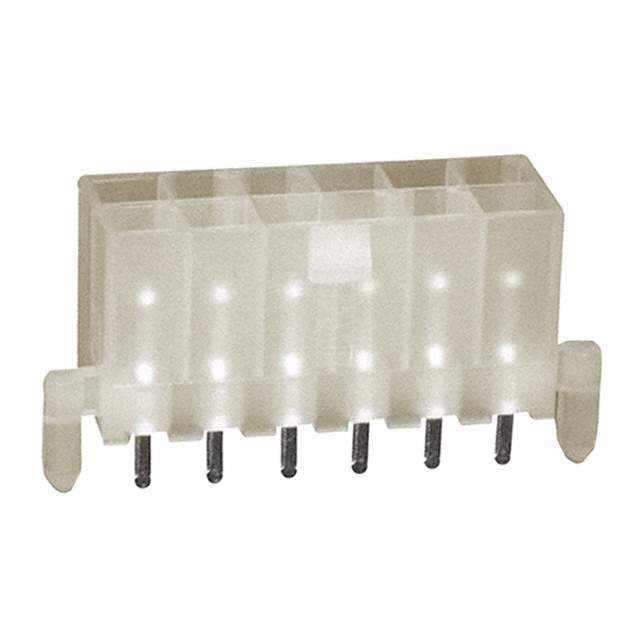

1-1586039-2 Real Image
Same model may have multiple batches, images only for reference.

1-1586039-2

Part No 1-1586039-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 4.2MM / Connector Header Through Hole 12 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586039
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-1586039-2-SI,115860392,2266-1-1586039-2,A30673
Standard Package 180
Win Source Part Number 1334243-1-1586039-2
Ultra Librarian 3D Model Ultra Librarian 1-1586039-2 CAD Model

Description

TE Connectivity AMP Connectors headers, male pins are designed to provide reliable and efficient performance in a variety of applications.

  • Position Number: 12
  • Pitch: 0.165 inches
  • Application: board to cable/wire
  • Contact Material: brass alloy
  • Contact Finish: gold-plated
  • Mounting Type: through-hole
  • Fastening Type: locking ramp
  • Operating Temperature: -40°C to 105°C
  • RoHS: compliant
