Same model may have multiple batches, images only for reference.

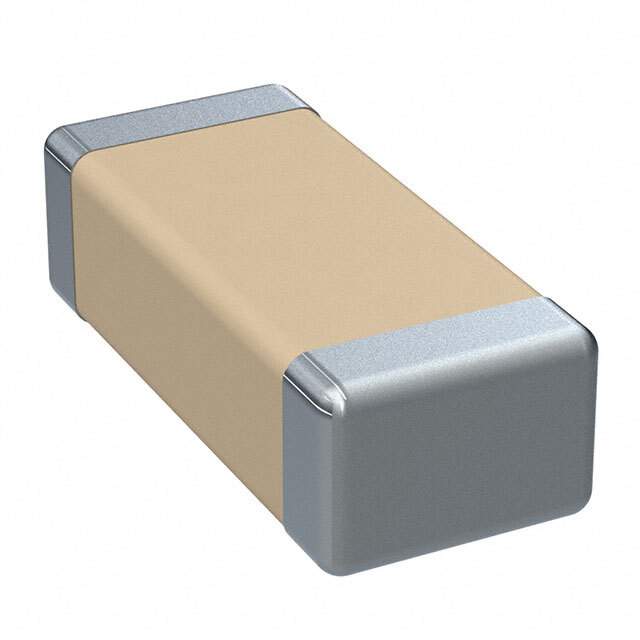

C1206X105K5RAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1206X105K5RAC7800

Part No C1206X105K5RAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Datasheet
C1206X105K5RAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R Flex
Package Tape & Reel
Capacitance 1 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Soft Termination
Applications Boardflex Sensitive
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.043" (1.10mm)
Base Product Number C1206X
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1314814-C1206X105K5RAC7800
Ultra Librarian 3D Model Ultra Librarian C1206X105K5RAC7800 CAD Model

Description

The KEMET 1314814-C1206X105K5RAC7800 is a ceramic capacitor with a capacitance of 1 µF and a voltage rating of 50V.

  • Capacitance: 1 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Series: SMD Comm X7R Flex series
  • Features: soft termination
  • Package: 1206 (3216 Metric) package
  • Application: designed for surface mount, MLCC applications
  • Thickness: 0.043" (1.10mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Suitability: suitable for boardflex sensitive applications
  • Temperature Range: -55°C to 125°C
