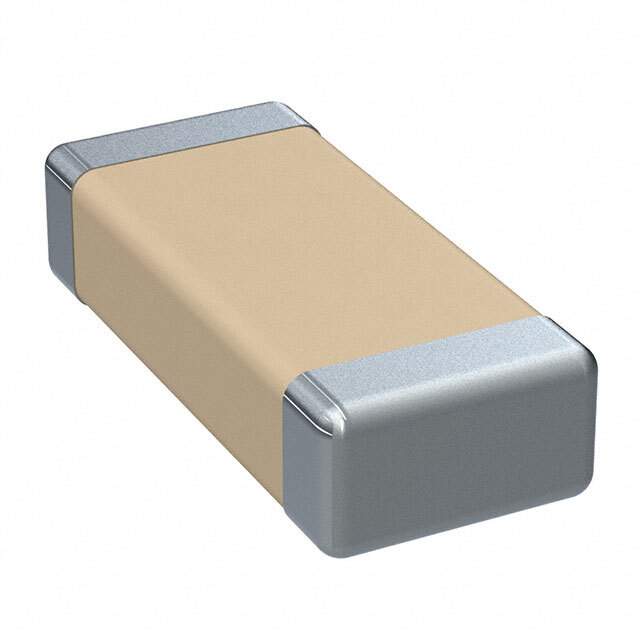

The Kemet C2220C106J5RACTU is a ceramic capacitor from Kemet's C2220 series. These capacitors are known for their high capacitance values, stable performance, and reliability in various applications. They utilize a surface-mount (SMD) design, making them suitable for automated assembly processes.

Applications

• Power supply decoupling
• Filtering in electronic circuits
• Bypass capacitors in high-frequency applications
• Voltage smoothing
• Energy storage

Features

• High capacitance value (10µF)
• Voltage rating of 50V
• X7R dielectric material
• Surface-mount (SMD) package
• RoHS compliant
• Operating temperature range of -55°C to +125°C

Benefits

• Stable performance over a wide temperature range due to the X7R dielectric
• Suitable for high-density circuit board designs due to its SMD package
• Reduces noise and voltage fluctuations in power supplies
• Long operational life and high reliability
• Facilitates efficient energy storage and delivery

Technical Specifications

The C2220C106J5RACTU capacitor features a capacitance of 10µF with a tolerance of ±5%. It is rated for 50V and utilizes an X7R dielectric. The X7R dielectric provides stable performance across a temperature range of -55°C to +125°C, with a capacitance variation of ±15%. The capacitor is housed in a 2220 (5750 metric) surface-mount package. Its dissipation factor is typically less than 2.5% at 1 kHz. The insulation resistance is greater than 100 GOhms. This capacitor is designed for reflow soldering processes, ensuring compatibility with standard PCB assembly techniques.
