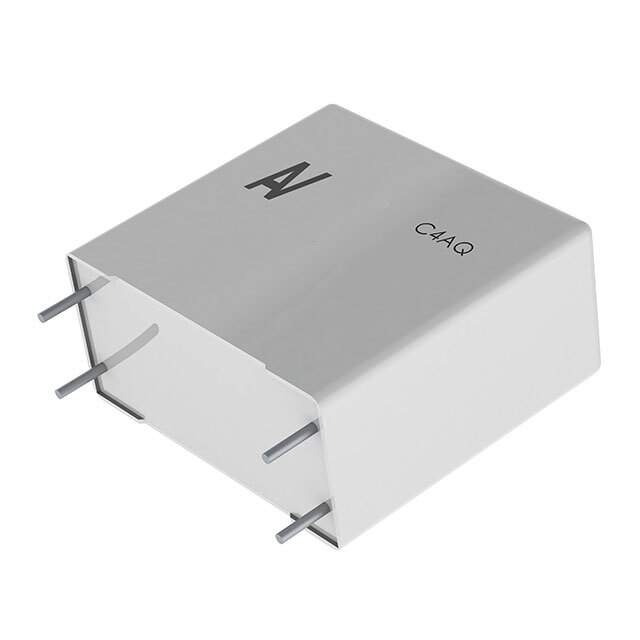

C4AQIEW6100A3BJ Real Image
Same model may have multiple batches, images only for reference.

C4AQIEW6100A3BJ

Part No C4AQIEW6100A3BJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 100UF 5% 800VDC RAD / 100 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQIEW6100A3BJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ
Package Box
Capacitance 100 µF
Tolerance ±5%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 1.9 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 2.264" L x 1.772" W (57.50mm x 45.00mm)
Height - Seated (Max) 2.571" (65.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQIE
Standard Package 18
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1349827-C4AQIEW6100A3BJ
Ultra Librarian 3D Model Ultra Librarian C4AQIEW6100A3BJ CAD Model

Description

The C4AQIEW6100A3BJ is a film capacitor designed for use in automotive applications from KEMET.

  • Capacitance: 100 µF
  • Voltage Rating: 800V
  • Tolerance: ±5%
  • ESR: 1.9 mOhms
  • Height: 2.571" (65.30mm)
  • Size/Dimension: 2.264" L x 1.772" W (57.50mm x 45.00mm)
  • Lead Spacing: 2.067" (52.50mm)
  • Package: Through-Hole
  • Series: C4AQ
  • Rating: AEC-Q200
  • Operating Temperature: -55°C to 105°C
