Same model may have multiple batches, images only for reference.

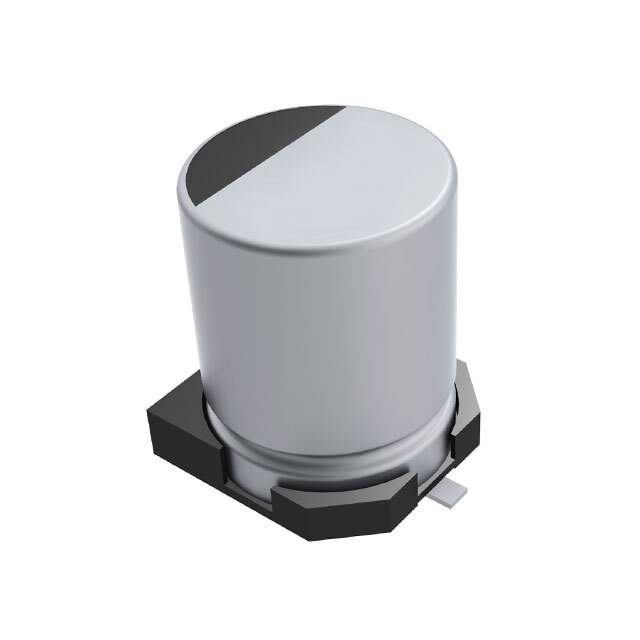

EDH107M100A9RAA Real Image
Same model may have multiple batches, images only for reference.

EDH107M100A9RAA

Part No EDH107M100A9RAA
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V SMD / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
EDH107M100A9RAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr KEMET
Series EDH
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 375 mA @ 10 kHz
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.504" L x 0.504" W (12.80mm x 12.80mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EDH107M
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339595-EDH107M100A9RAA
Ultra Librarian 3D Model Ultra Librarian EDH107M100A9RAA CAD Model

Description

The EDH107M100A9RAA capacitor by KEMET is an aluminum electrolytic capacitor with a capacitance of 100µF and a voltage rating of 100V.

  • Capacitance: 100µF
  • Voltage - Rated: 100V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 300mA
  • Ripple Current @ High Frequency: 375mA
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.551" (14.00mm)
  • Application: General Purpose
