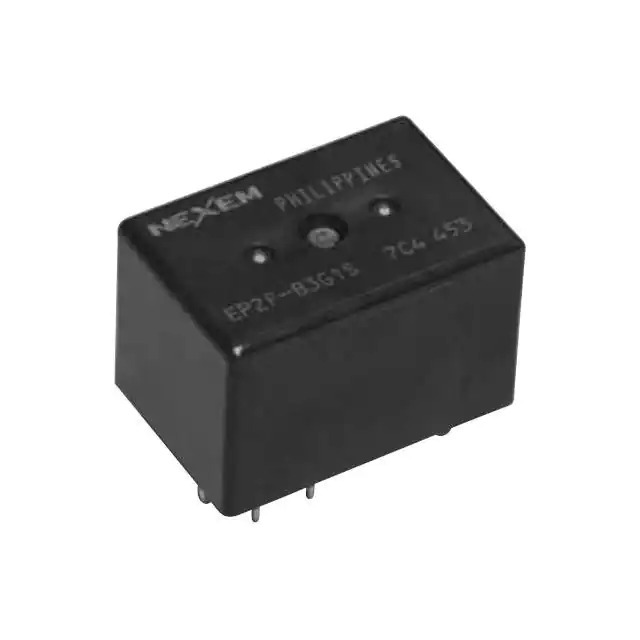

Same model may have multiple batches, images only for reference.
EP2F-B3N1ST Kemet
Same model may have multiple batches, images only for reference.

EP2F-B3N1ST

Part No EP2F-B3N1ST
Manufacturer Kemet
Catalog Automotive Relays
Description AUTOMOTIVE RELAYS HIGH TEMP/HIGH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr KEMET
Series EP2F
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 25 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.9 VDC
Operate Time 5 ms
Release Time 2 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 640mW
Coil Resistance 225 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1355343-EP2F-B3N1ST
Ultra Librarian 3D Model Ultra Librarian EP2F-B3N1ST CAD Model

Description

The 1186483 is an automotive relay from KEMET's EP2F series.

  • Temperature Range: -40°C ~ 125°C
  • Termination Style: PC Pin
  • Seal: Fully Sealed
  • Contact Form: SPDT (1 Form C) x 2
  • Contact Rating (Current): 25 A
  • Coil Voltage: 12VDC
  • Coil Current: 53.3 mA
  • Switching Voltage: 16VDC (Max)
  • Must Operate Voltage: 6.5 VDC
  • Operate Time: 5 ms
  • Release Time: 2 ms
