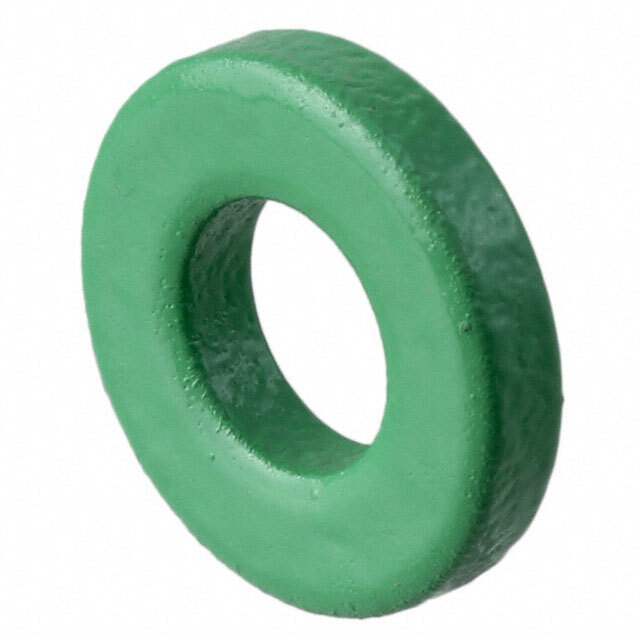

ESD-R-14A KEMET
Same model may have multiple batches, images only for reference.

ESD-R-14A

Part No ESD-R-14A
Manufacturer Kemet
Catalog Cable Ferrites
Description FERRITE CORE SOLID 6.2MM
Datasheet
ESD-R-14A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206327-ESD-R-14A
Manufacturer KEMET
Category Filters-Cable Ferrites
Series ESD-R
Package Bulk
Product Status Active
Type Round
Design Solid
Material MnZn
Inner Dimension 0.244" Dia (6.20mm)
Outer Dimension 0.591" Dia (15.00mm)
Ultra Librarian 3D Model Ultra Librarian ESD-R-14A CAD Model

Description

The KEMET ESD-R series solid toroidal cores are designed to use on round cables. The wide range of Manganese Zinc (MnZn) and Nickel Zinc (NiZn) options are available in bare, coated, and case types and allows for targeting of specific frequency ranges.EMI cores are part of a family of passive components, which address the issues of noise or electromagnetic interference (EMI) in circuits or systems.
