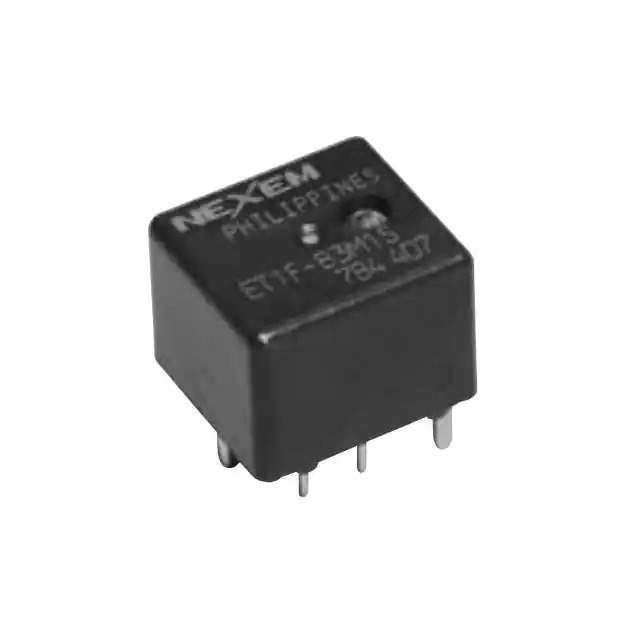

ET1-B3M1S Real Image ET1-B3M1S real image
Same model may have multiple batches, images only for reference.
ET1-B3M1S Real Image ET1-B3M1S real image
ET1-B3M1S Real Image ET1-B3M1S real image
Same model may have multiple batches, images only for reference.

ET1-B3M1S

Part No ET1-B3M1S
Manufacturer Kemet
Catalog Automotive Relays
Description AUTOMOTIVE RELAYS 1 FORM C SEALE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr KEMET
Series ET1
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 25 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.9 VDC
Operate Time 2.5 ms
Release Time 3 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 640mW
Coil Resistance 225 Ohms
Standard Package 3,240 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 590090-ET1-B3M1S
Ultra Librarian 3D Model Ultra Librarian ET1-B3M1S CAD Model

Description

The 590090-ET1-B3M1S is an automotive relay from the ET1 series.

  • Type: SPDT
  • Contact Rating: 25A
  • Construction: Sealed
  • Package: Tube
  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Coil Current: 53.3 mA
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: KEMET
